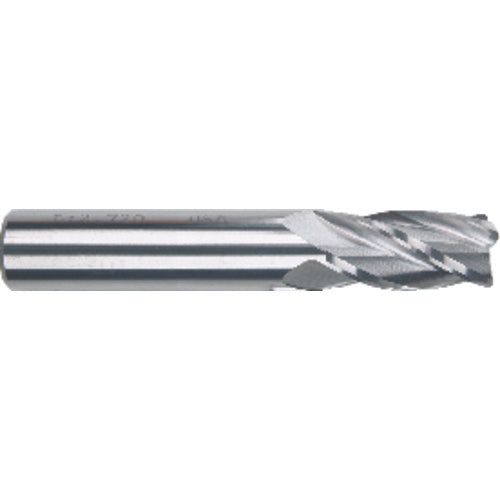

2.5 mm × 3 mm × 7 mm × 39 mm 4 Flute Single End Carbide Finishing Center Cutting End Mill-Uncoated Series/List #5961
Item #: MT3259313
Brand: Morse Cutting Tools
Model #: 59313
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 2.5 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Usable Length (LU) | 7 mm |
| Depth of Cut Maximum (APMX) | 7 mm |
| Tool Type | Single End |
| Overall Length (OAL) | 39 mm |
| Length Group | Regular |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | Uncoated |
| Style | Finishing |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.0984″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
| Shank Type | Plain |
| Series/List # | 5961 |
