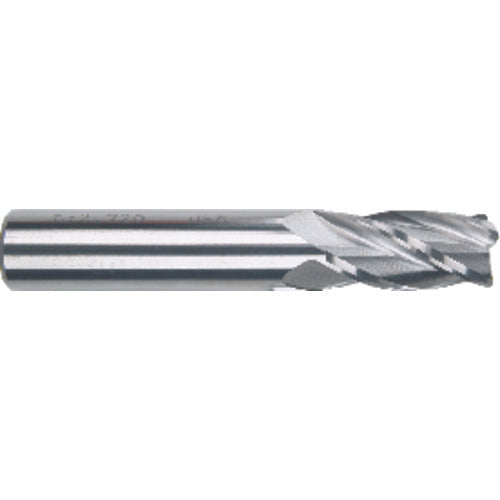

3/16″ Dia. × 3/16″ Shank × 5/8″ DOC × 2″ OAL, Carbide, Uncoated, 4 Flute, 30° Helix, Plain, External, Square, Solid End Mill Series/List #5943
Item #: MT3257912
Brand: Morse Cutting Tools
Model #: 57912
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Tool Type | Single End |
| Overall Length (OAL) | 2″ |
| Length Group | Regular |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | Uncoated |
| Style | Finishing |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.1875″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
| Shank Type | Plain |
| Series/List # | 5943 |
