Brand: Widia / Part #: 4167123

Brand: Widia / Part #: 4167123


Item #: 95158580
Brand: Widia
Model #: 4167123

Product Specifications

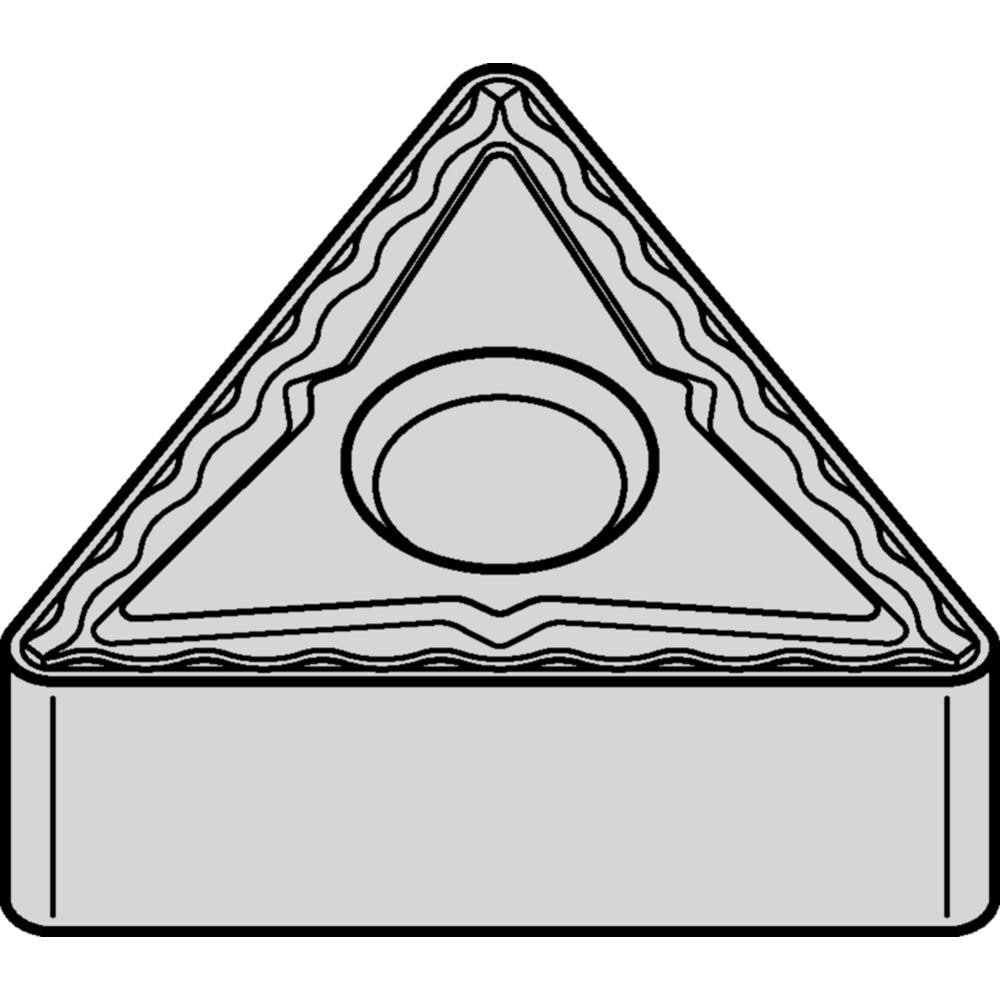

Insert Style TNMG
Insert Shape Code T
Insert Size Code 432
Insert Shape Triangle
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade TN15M
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.4331
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 60.00
Relief Angle 0.000
Series TNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.8661
Number Of Cutting Edges 6
Primary Workpiece Material Stainless Steel; Steel
Primary Workpiece Material Code P; M
Secondary Workpiece Material Super-alloys & Titanium
Secondary Workpiece Material Code S
Ansi Code TNMG4326P
Iso Code TNMG2204086P
Manufacturers Catalog Number TNMG4326P
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 6P
Style TNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$10.34
