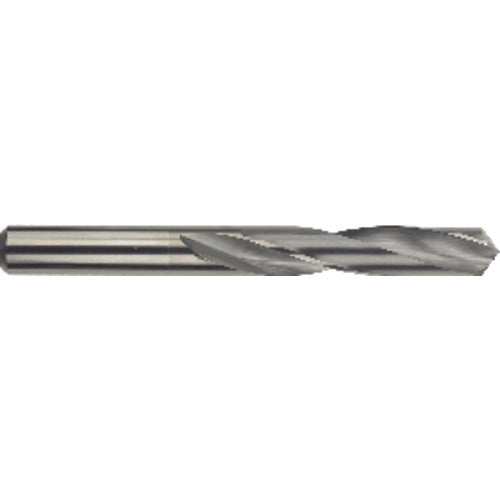

#40 Dia. × 0.098″ Shank × 1″ Flute Length × 2″ OAL, Standard, 118°, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill Series/List #5374T
Item #: MT1292114
Brand: Morse Cutting Tools
Model #: 92114
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #40 |
| Tool Type | Drill |
| Decimal Equivalent | 0.098″ |
| Point Shape | Split |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #40 |
| Measurement Type | Wire Gauge |
| Length Group | Standard |
| Series/List # | 5374 |
| Coating | TiAlN |
| Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 0.098″ |
| Length Chip Flute (LCF) | 1″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2″ |
| Point Angle (SIG) | 118 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 25 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Body Material | Carbide |
| Cutting Edge Material | Carbide |
