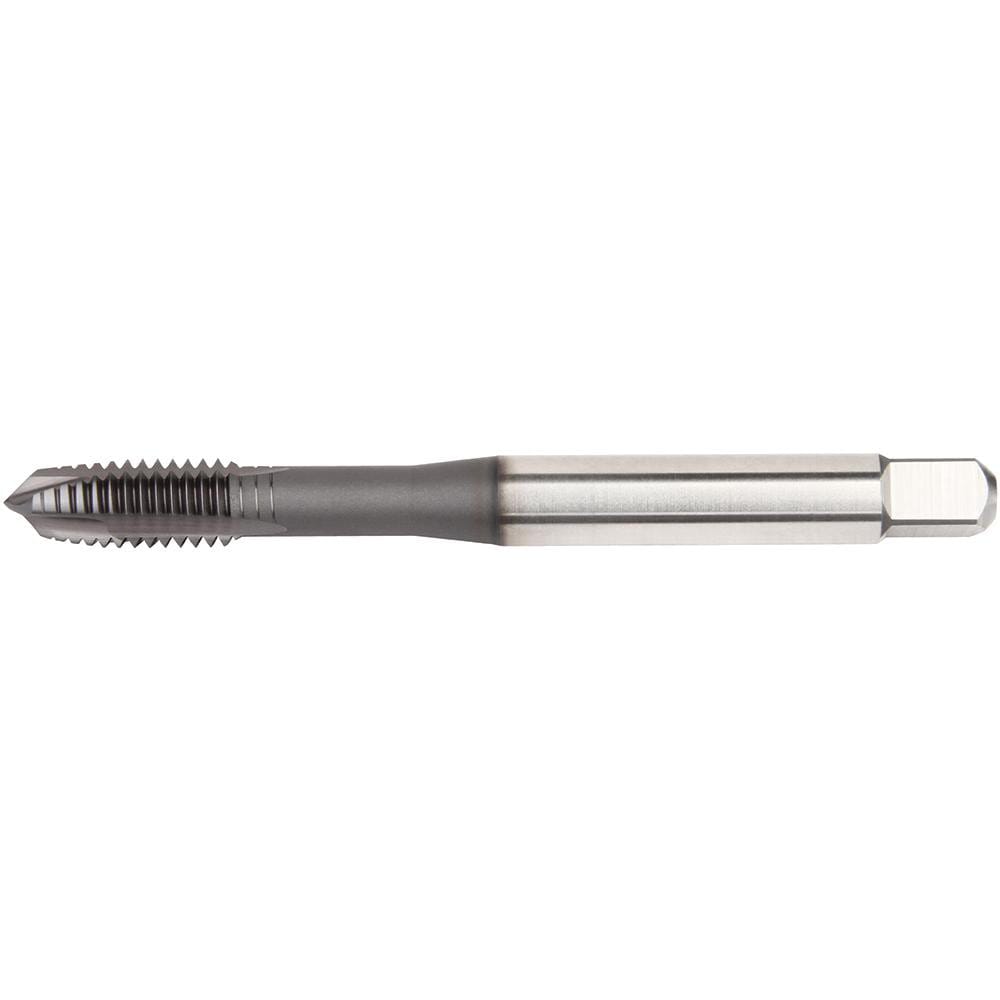

Brand: Widia / Part #: 5366684

Brand: Widia / Part #: 5366684


Item #: 93308815
Brand: Widia
Model #: 5366684

Product Specifications

Thread Size (mm) M5x0.8
Number Of Flutes 2
Chamfer Plug
Thread Limit 6H
Class Of Fit 6H
Coating/Finish Uncoated
Threads per Inch 32
Material High Speed Steel
Coolant Through No
Thread Direction Right Hand
Thread Depth (mm) 25.00
Thread Pitch (mm) 0.80
Thread Standard UNC
Material Grade WU40EG
Thread Length (mm) 12.00
Overall Length (mm) 70.0000
Shank Diameter (Decimal Inch) 0.2362
Square Length (mm) 8.00
Square Size (mm) 4.90
Material Application Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel
Series VT-SPO
$20.57
