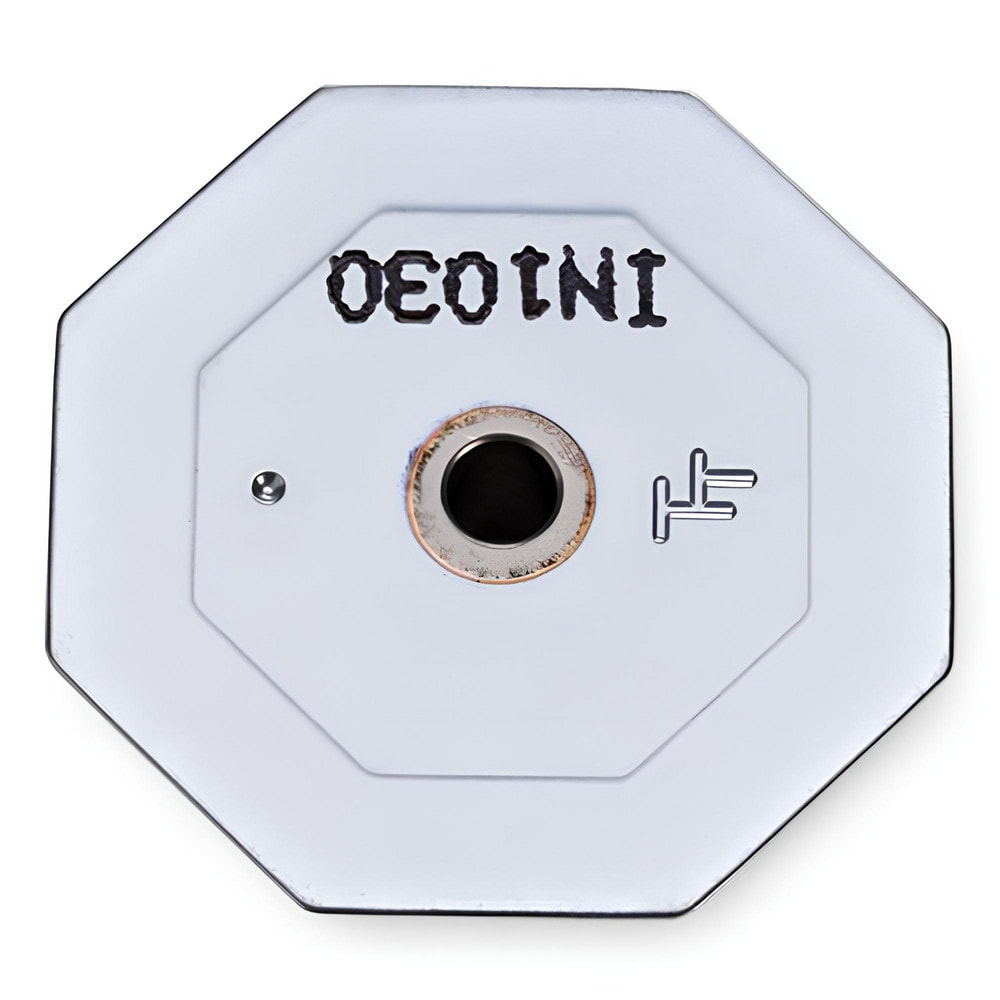

Brand: Ingersoll Cutting Tools / Part #: 5612140
Item #: 67304394
Brand: Ingersoll Cutting Tools
Model #: 5612140
Product Specifications
| Insert Style | OFCN |
| Insert Size Code | 0704 |
| Insert Material | Carbide |
| Manufacturer Grade | TT7080 |
| Inscribed Circle (Decimal Inch) | 0.7060 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | OFCN |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Octagon |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | OFCN0704TN-EMR |
| Rake Angle | 25.000 |
| Manufacturers Catalog Number | OFCN0704TN-EMR TT7080 |
| Cutter Series Compatibility | 5N2L |
| Chip Breaker | EMR |
| Cutting Direction | Right Hand |
| Shape | Octagon |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.0000 |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.7060 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7060 |
