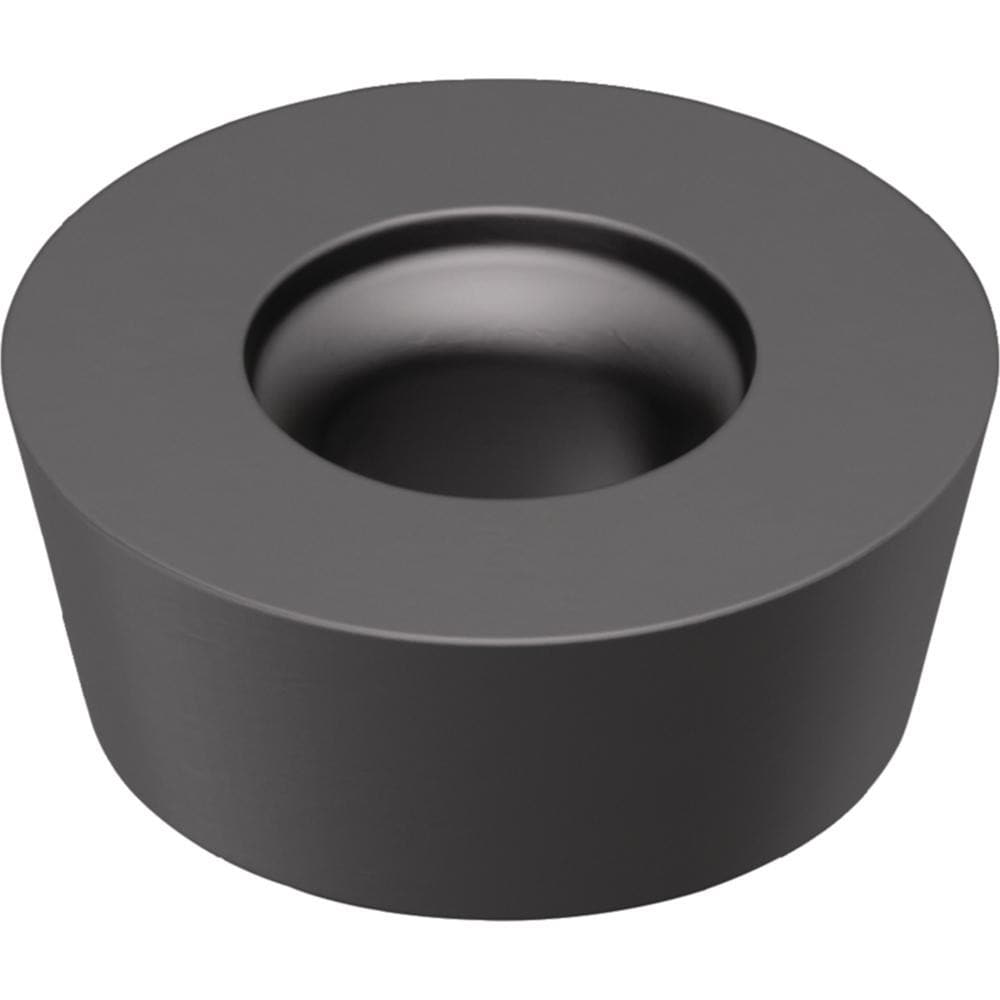

Brand: Widia / Part #: 3367756

Brand: Widia / Part #: 3367756


Item #: 94484300
Brand: Widia
Model #: 3367756

Product Specifications

Insert Style RPMW
Insert Size Code 1003
Insert Size 10
Insert Material Carbide
Manufacturer Grade WU20PM
Thickness (Inch) 1/8
Inscribed Circle (Decimal Inch) 0.3937
Inscribed Circle (mm) 10.00
Corner Radius (Decimal Inch) 0.1969
Corner Radius (mm) 5.00
Insert Hand Neutral
Relief Angle 11.000
Series RPMW
Coating Process PVD
Hole Diameter (Decimal Inch) 0.1811
Maximum Depth of Cut (Decimal Inch) 0.1969
Number Of Cutting Edges 1
Insert Shape Round
Rake Positive
Secondary Workpiece Material Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S; H; K; M; N
Ansi Code RPMW1003M0
Iso Code RPMW1003M0
Manufacturers Catalog Number RPMW1003M0
Cutter Series Compatibility CIP MILLING
Chip Breaker None
Cutting Direction Neutral
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Round
Length of Cut (mm) 5.0000
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Single
Coating/Finish TiAlN
Length 10.00
Width (Decimal Inch - 4 Decimals) 0.3937
Width (Mm - 2 Decimals) 10.00
Thickness (Decimal Inch - 4 Decimals) 0.1250
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.3937
$4.01
