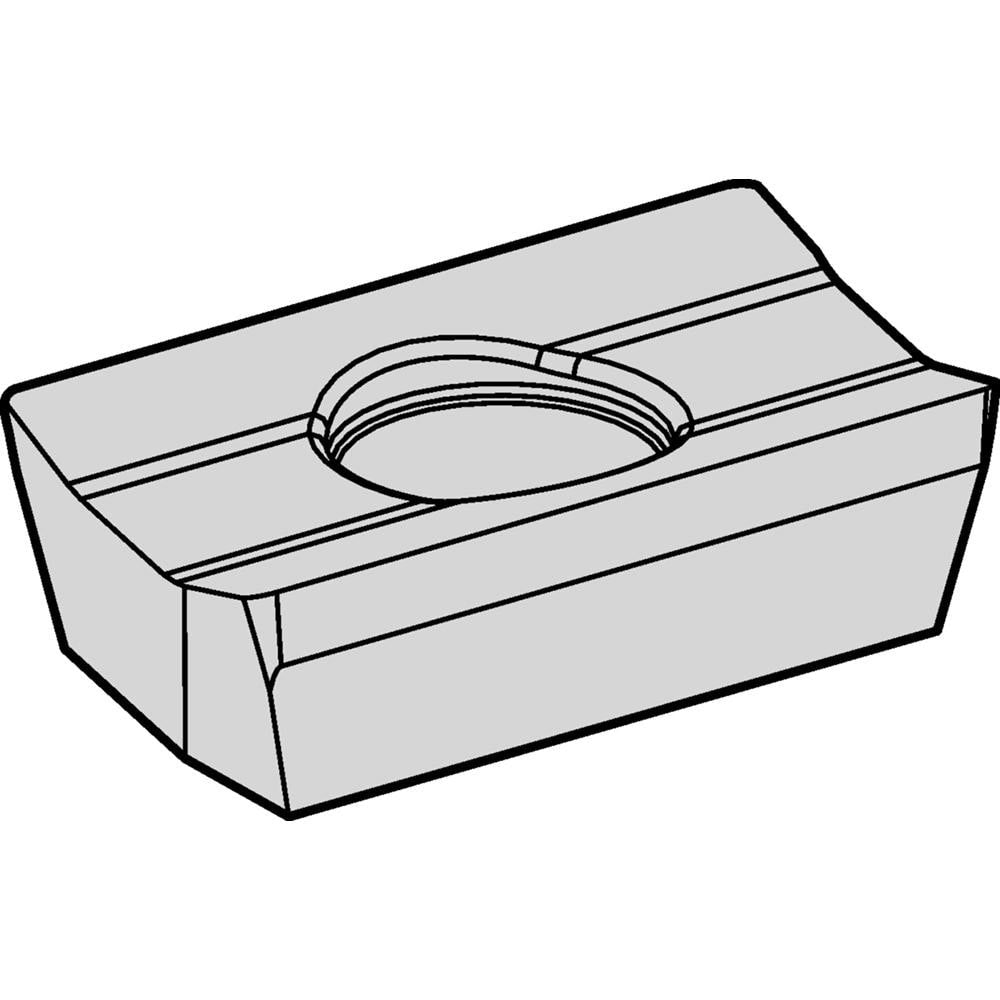

Brand: Widia / Part #: 5645177

Brand: Widia / Part #: 5645177


Item #: 36071439
Brand: Widia
Model #: 5645177

Product Specifications

Insert Style XPHT
Insert Size Code 1604
Insert Size 33
Insert Material Carbide
Width (Inch) 3/8
Manufacturer Grade WP40PM
Length (Inch) 5/8
Thickness (Inch) 3/16
Inscribed Circle (Inch) 3/8
Inscribed Circle (Decimal Inch) 0.3750
Corner Radius (Decimal Inch) 0.0313
Corner Radius (Inch) 1/32
Insert Hand Right Hand
Relief Angle 11.000
Series M680
Coating Process PVD
Hole Diameter (Decimal Inch) 0.1748
Maximum Depth of Cut (Decimal Inch) 0.6169
Number Of Cutting Edges 2
Insert Shape Parallelogram
Rake Positive
Primary Workpiece Material Stainless Steel; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; M
Ansi Code XPHT332
Iso Code XPHT160408
Manufacturers Catalog Number XPHT332
Cutter Series Compatibility M680 XP1604 IN
Chip Breaker None
Cutting Direction Right Hand
Material Application High-Temperature Alloy; Stainless Steel; Steel
Shape Parallelogram
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Single
Coating/Finish AlCrN; TiAlN
Included Angle Degree 80
Width (Decimal Inch - 4 Decimals) 0.3750
Thickness (Decimal Inch - 4 Decimals) 0.1875
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.6250
$19.31
