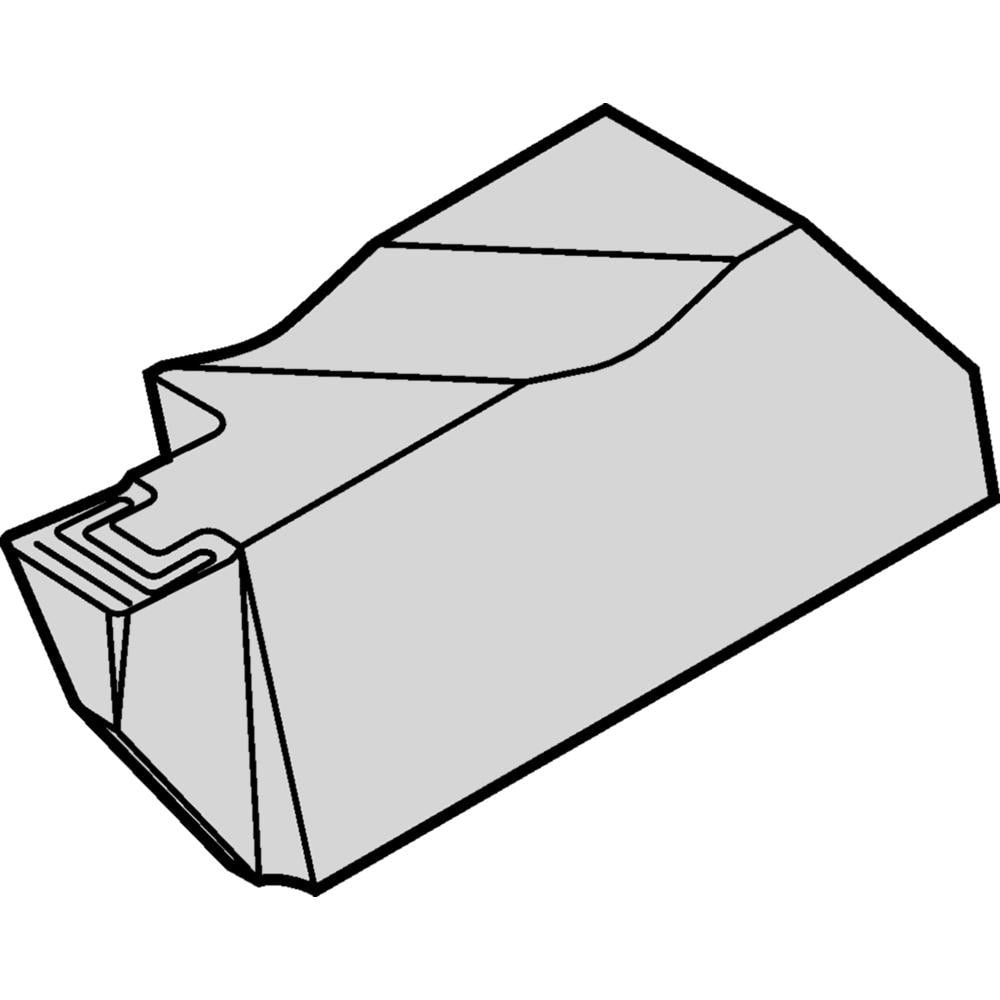

Brand: Widia / Part #: 3607464
Item #: 94456555
Brand: Widia
Model #: 3607464
Product Specifications
| Insert Style | NFD-K |
| Insert Size Code | 3 |
| Insert Size | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6025 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Inch) | 1/4 |
| Maximum Depth of Cut (mm) | 6.35 |
| Insert Holding Method | Clamp |
| Cutting Height (Inch) | 1/4 |
| Insert Hand | Left Hand |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Lead Angle | 11.000 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Series | NFD-K |
| Coating Process | PVD |
| Rake Angle | 10.000 |
| Overall Length (Decimal Inch) | 0.9860 |
| Overall Length (mm) | 25.0300 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; N |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Ansi Code | NFD3M300LK |
| Iso Code | NFD3M300LK |
| Relief Angle | 11 |
| Maximum Corner Radius (Decimal Inch) | 0.0075 |
| Minimum Corner Radius (Decimal Inch) | 0.0100 |
| Manufacturers Catalog Number | NFD3M300LK |
| Insert Thickness (Decimal Inch) | 0.3440 |
| Minimum Groove Width (mm) | 3.00 |
| Thickness (Inch) | 11/32 |
| Type | Top Notch Grooving Insert |
| Maximum Groove Width (mm) | 3.00 |
| Minimum Insert Width (mm) | 4.98 |
| Chip Breaker | K |
| Insert Seat Size | 3 |
| Style | Top Notch Grooving Insert |
| Insert Height (Decimal Inch) | 0.3440 |
| Full Radius | No |
| Gage Diameter (Decimal Inch) | 0.3750 |
| Coating Classification | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Gage Diameter (Inch) | 3/8 |
| Overall Width | 4.9800 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1960 |
| Coating/Finish | TiAlN |
| Number Of Cutting Edges | 1 |
| Single Or Double End | Single |
| Groove Width (mm) | 3.00 |
| For Use With | Grooving; Turning |
| Insert Thickness | 8.74 |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
