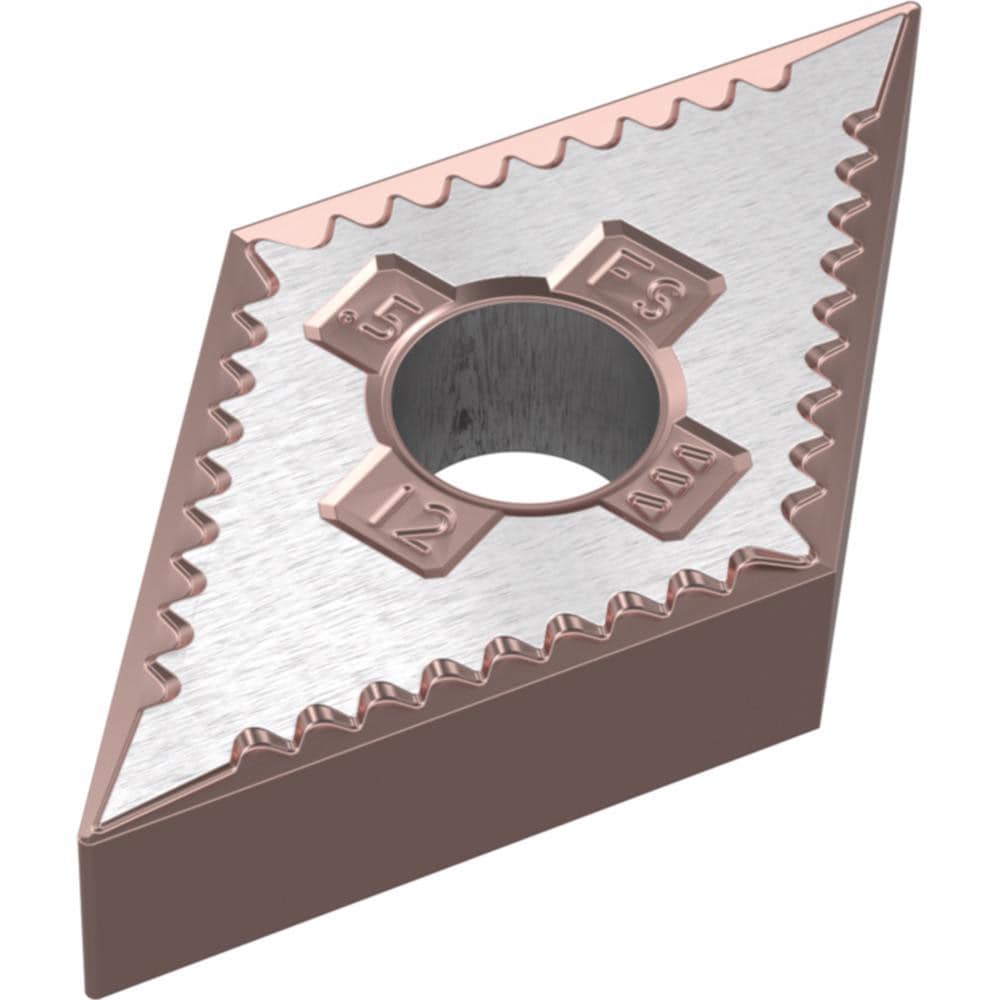

Brand: Widia / Part #: 5548675

Brand: Widia / Part #: 5548675


Item #: 95933701
Brand: Widia
Model #: 5548675

Product Specifications

Insert Style DNGG
Insert Shape Code D
Insert Size Code 431
Insert Shape Diamond
Coating/Finish AlTiSiN
Manufacturer Grade WS10PT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.3052
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code G
Included Angle 55.00
Relief Angle 0.000
Series DNGG
Coating Process PVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6104
Number Of Cutting Edges 4
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Stainless Steel; Steel
Secondary Workpiece Material Code P; M
Ansi Code DNGG431FS
Iso Code DNGG150404FS
Manufacturers Catalog Number DNGG431FS
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker FS
Cutting Edge Style Sharp
Style DNGG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$19.33
