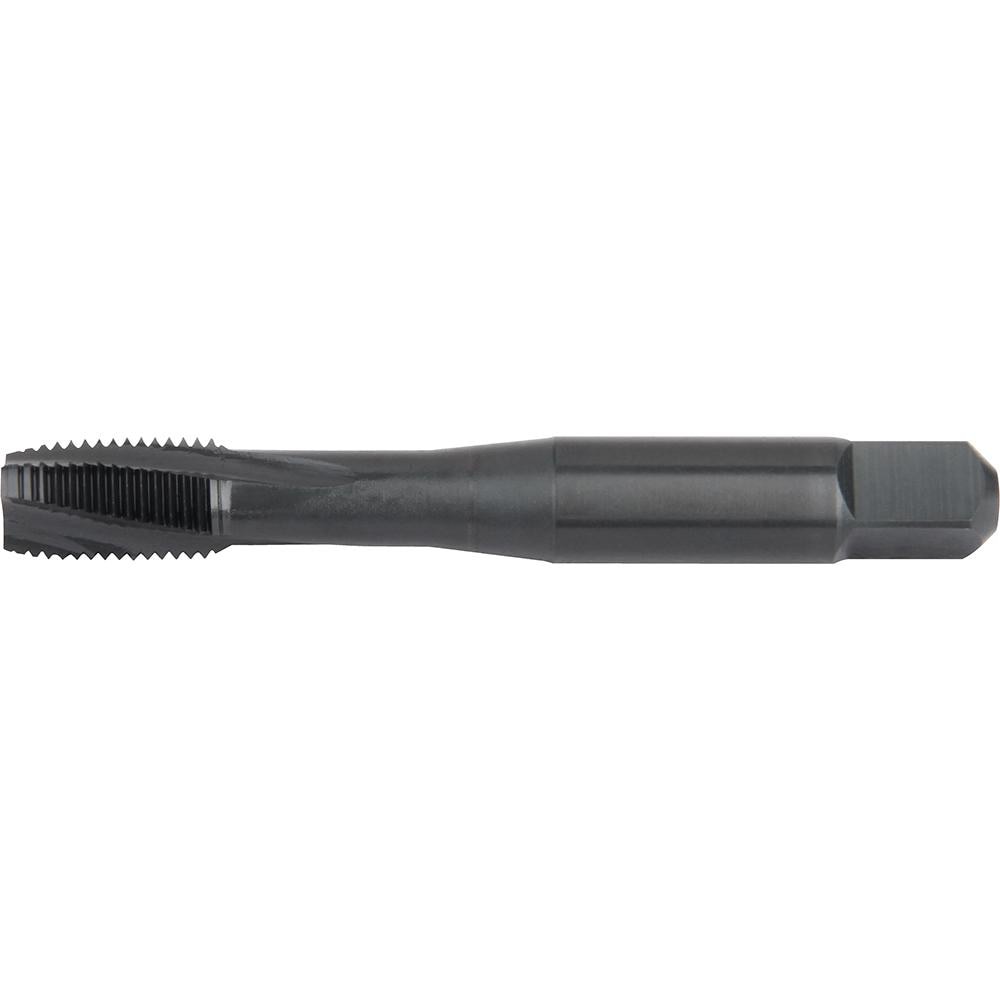

Brand: Widia / Part #: 5705995

Brand: Widia / Part #: 5705995


Item #: 12674388
Brand: Widia
Model #: 5705995

Product Specifications

Thread Size (Inch) 1/4-20
Chamfer Bottoming
Thread Limit H3
Class Of Fit 3B
Number Of Flutes 3
Material Powdered Metal
Threads per Inch 20
Thread Direction Right Hand
Flute Direction Right Hand
Coating/Finish Oxide; Nitride
Coolant Through No
Thread Length (Decimal Inch) 0.4400
Overall Length (Decimal Inch) 2.5000
Thread Depth (Decimal Inch) 1.0000
Thread Pitch (Decimal Inch) 0.0500
Thread Standard UNC
Material Grade WS39MG
Shank Diameter (Decimal Inch) 0.2550
Square Size (Decimal Inch) 1.8900
Material Application High-Temperature Alloy
Series GT94
$26.79
