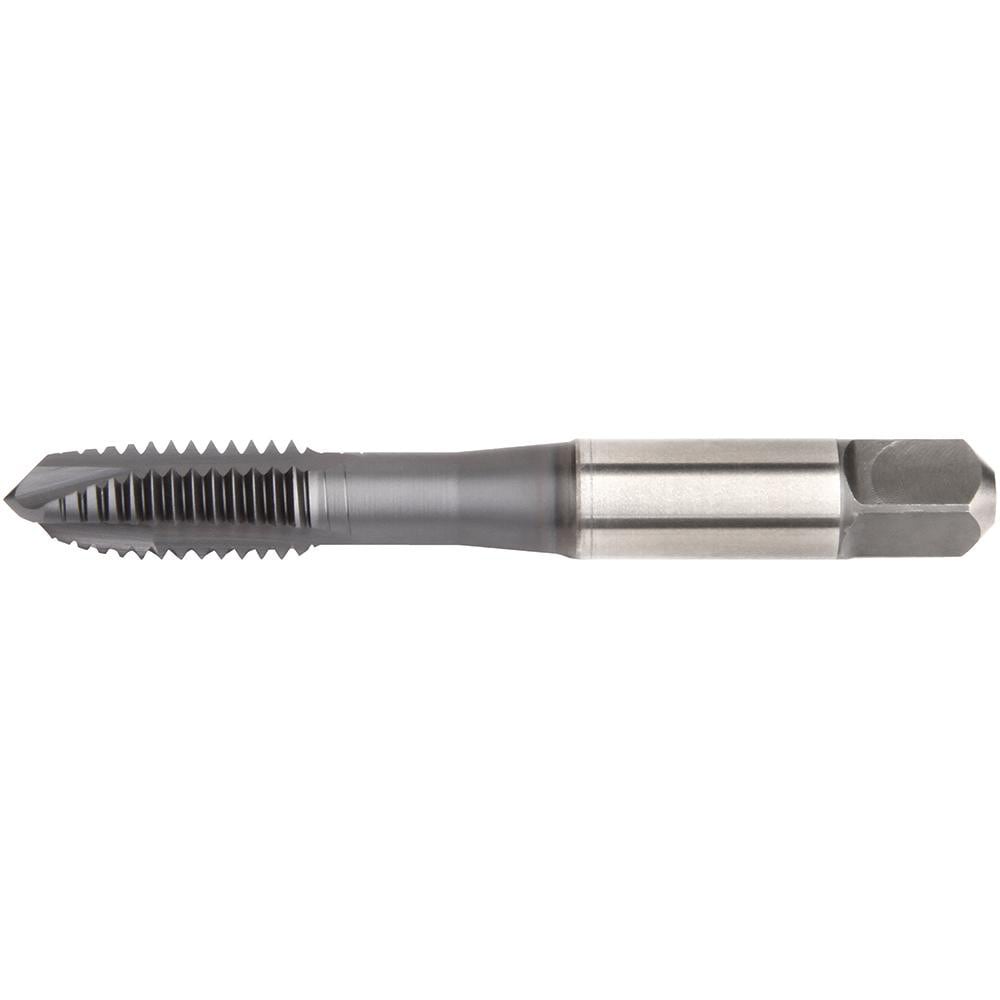

Brand: Widia / Part #: 5362703
Item #: 93314888
Brand: Widia
Model #: 5362703
Product Specifications
| Thread Size (mm) | M6x1 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | D5 |
| Class Of Fit | D5 |
| Coating/Finish | Black Oxide |
| Threads per Inch | 25 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 25.40 |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | UNC |
| Material Grade | WP49EG |
| Thread Length (mm) | 16.00 |
| Overall Length (mm) | 63.5000 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Length (mm) | 8.00 |
| Square Size (mm) | 4.80 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
