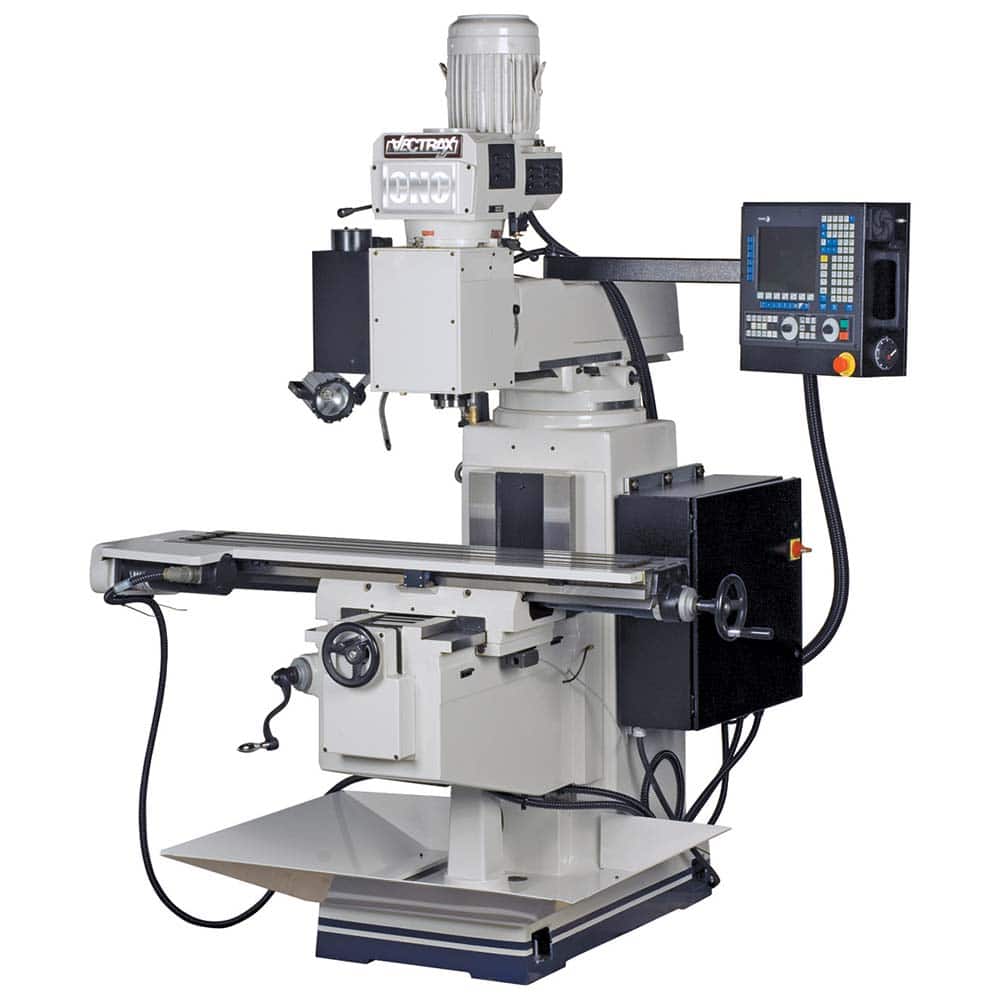

Fagor - 54" Long x 10" Wide, 3 Phase Fagor DP700 CNC Milling Machine
Item #: 16420069
Brand: Fagor
Model #: 1583234/8677681
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Variable Speed Pulley |
| CNC Controller Brand | Fagor |
| CNC Controller Model | DP700 |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 10 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 31.7000 |
| Cross Travel (Decimal Inch) | 16.6000 |
| Knee Travel (Inch) | 17-1/2 |
| Positioning Accuracy (Decimal Inch) | 0.0008 |
| Positioning Repeatability (Decimal Inch) | 0.0005 |
| Maximum Spindle Speed (RPM) | 5000 |
| Minimum Spindle Speed (RPM) | 50 |
| Spindle Travel Length (Inch) | 4.4000 |
| Quill Diameter (Inch) | 3.8750 |
| Maximum Spindle to Table Distance (Inch) | 17-1/2 |
| Maximum Spindle To Column Distance (Decimal Inch) | 26.7700 |
| Table Load Capacity (Lb.) | 750.00 |
| Table Load Capacity (kg) | 341.00 |
| Number of T-Slots | 3.000 |
| Ram Travel Length (Inch) | 18-7/8 |
| Horsepower (HP) | 5 |
| Voltage | 230 |
| Overall Length (Inch) | 70 |
| Overall Height (Inch) | 87 |
| Overall Depth (Inch) | 65 |
| Includes | 10x54" BXHD Frequency CNC Mill Frame; 3/4x10" Flanged Nuts; 3/4-10-5" Gibraltar Driver Stud |
| Warranty | 1 Year |
