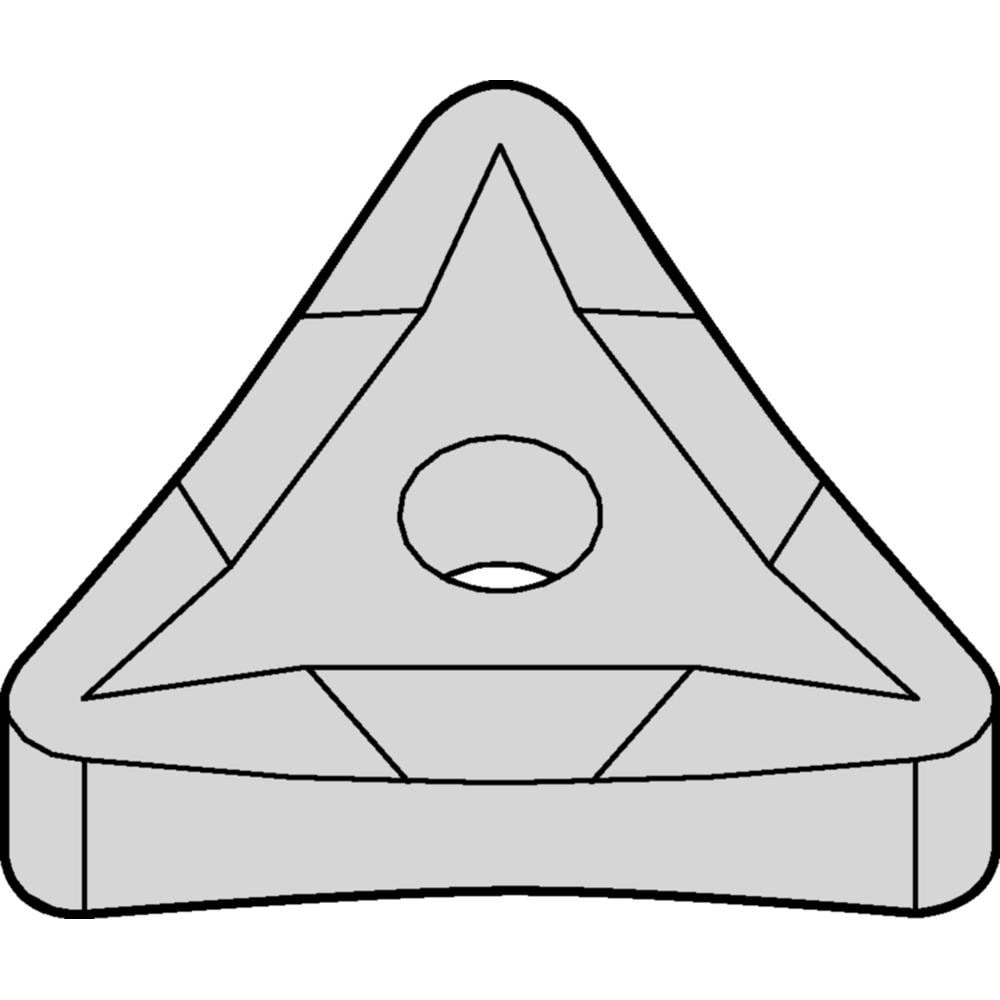

Brand: Widia / Part #: 4173670

Brand: Widia / Part #: 4173670


Item #: 94477213
Brand: Widia
Model #: 4173670

Product Specifications

Insert Style TNMP
Insert Shape Code T
Insert Size Code 331
Insert Shape Triangle
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM25CT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1500
Maximum Depth of Cut (Decimal Inch) 0.3248
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 60.00
Relief Angle 0.000
Series TNMP
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6496
Number Of Cutting Edges 6
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code TNMP331
Iso Code TNMP160404
Manufacturers Catalog Number TNMP331
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker None
Style TNMP
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$5.82
