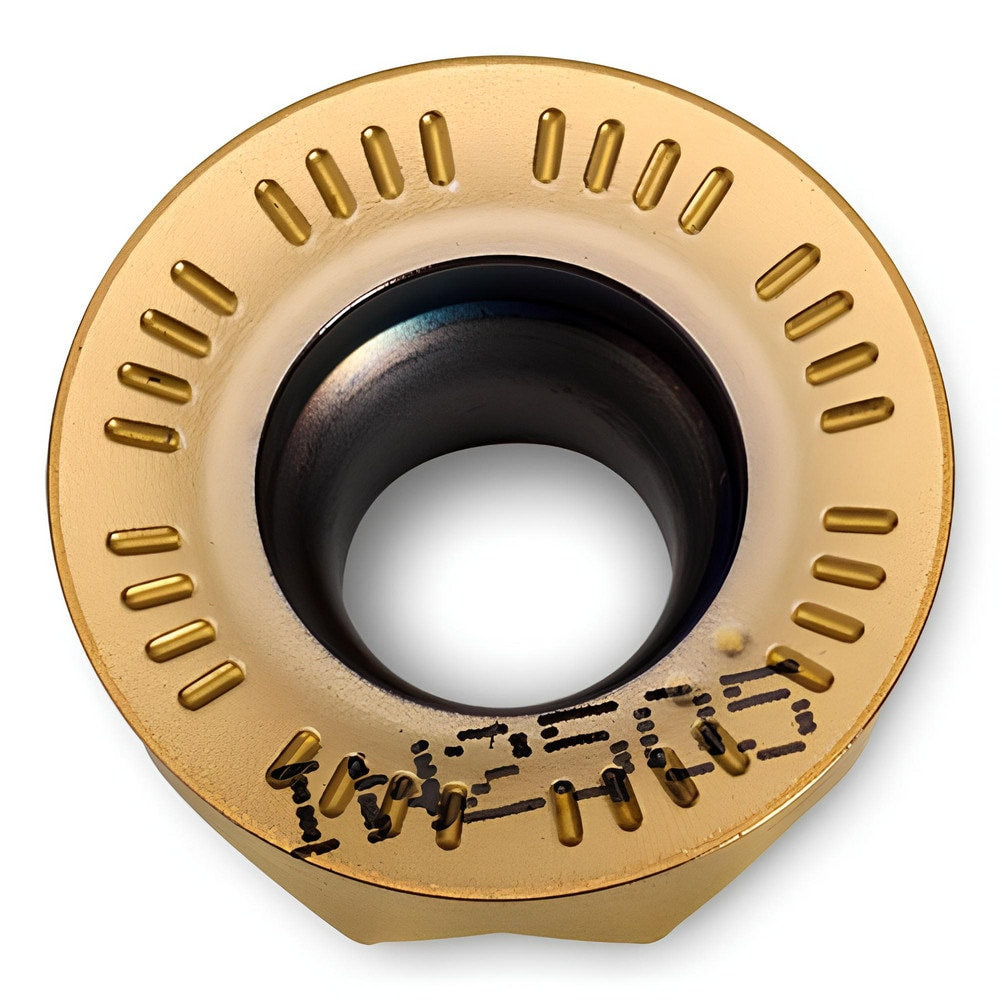

Brand: Ingersoll Cutting Tools / Part #: 5614311
Item #: 67323055
Brand: Ingersoll Cutting Tools
Model #: 5614311
Product Specifications
| Insert Style | RJLT |
| Insert Size Code | 1204 |
| Insert Material | Carbide |
| Manufacturer Grade | IN6530 |
| Inscribed Circle (mm) | 12.00 |
| Corner Radius (mm) | 6.00 |
| Insert Hand | Neutral |
| Series | RJLT |
| Coating Process | MTCVD |
| Maximum Depth of Cut (mm) | 6.00 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | RJLT1204MON |
| Manufacturers Catalog Number | RJLT1204MON IN6530 |
| Cutter Series Compatibility | 15B1B; 35B6H; 1A7H |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Round |
| Length of Cut (mm) | 6.0000 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Length | 12.00 |
| Width (Mm - 2 Decimals) | 12.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
| Multi-Use Tool | No |
