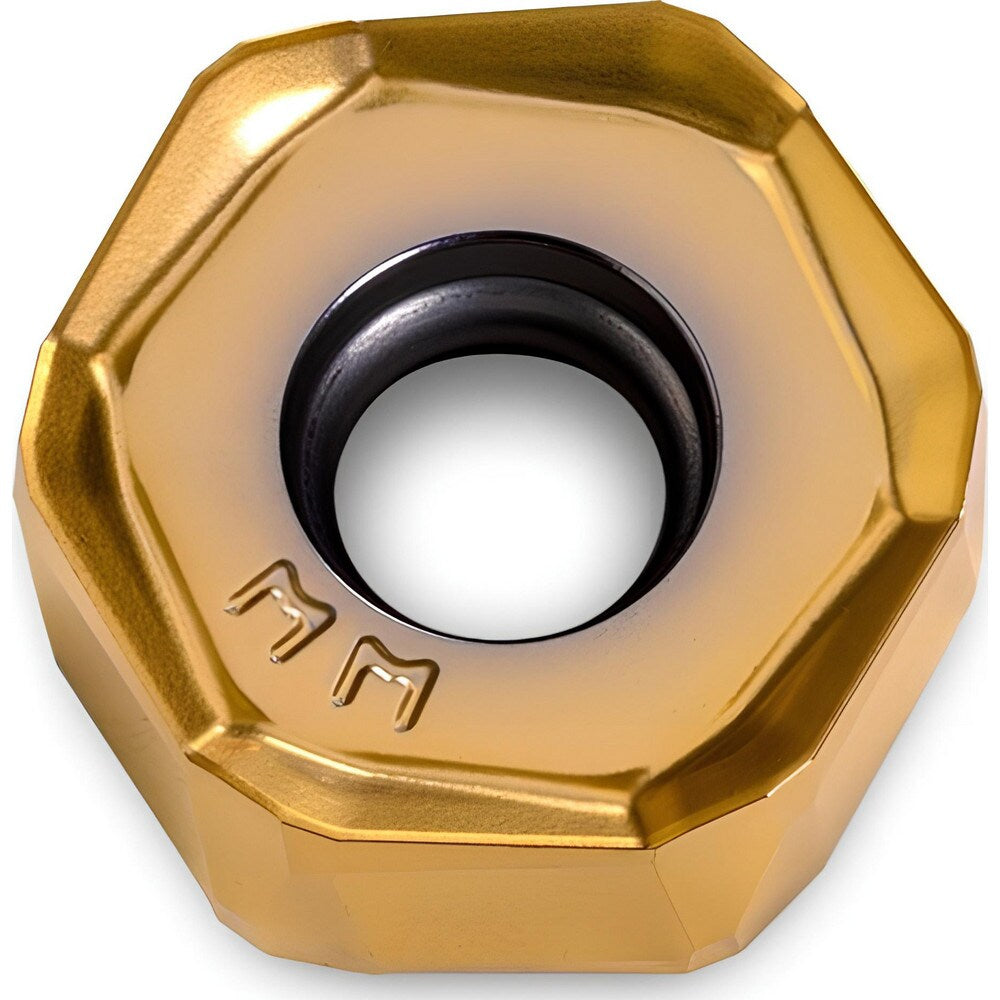

Brand: Ingersoll Cutting Tools / Part #: 6310530
Item #: 67329839
Brand: Ingersoll Cutting Tools
Model #: 6310530
Product Specifications
| Insert Style | HNGU |
| Insert Size Code | 0605 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Inscribed Circle (mm) | 14.00 |
| Insert Hand | Right Hand |
| Series | HNGU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2300 |
| Number Of Cutting Edges | 12 |
| Insert Shape | Hexagon |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | HNGU0605ANTR-MM |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | HNGU0605ANTR-MM IN2505 |
| Cutter Series Compatibility | HN5D |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Shape | Hexagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 120 |
| Length | 14.00 |
| Width (Mm - 2 Decimals) | 14.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2640 |
| Multi-Use Tool | No |
