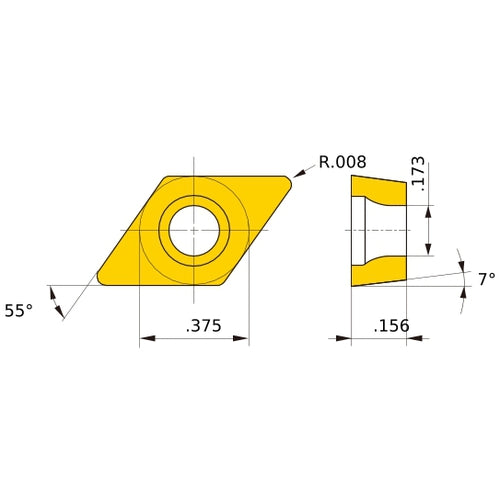

DCMT32.50.5FM VP15TF INSERT
Item #: MB02658478
Brand: Mitsubishi Materials USA
Model #: 658478
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Hard Materials |
| Grade | VP15TF |
| Application | Finish Cutting |
| Tool Type | Turning Insert |
| Insert Style | DCMT |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Corner Radius (RE) | 0.2 mm |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.50.5 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.97 mm |
| Chip Breaker Type | FM |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 55 Degrees |
| Shape | 55° Rhombic |
| Cutting Edge Material | Carbide |
| Series/List # | VP15TF |
