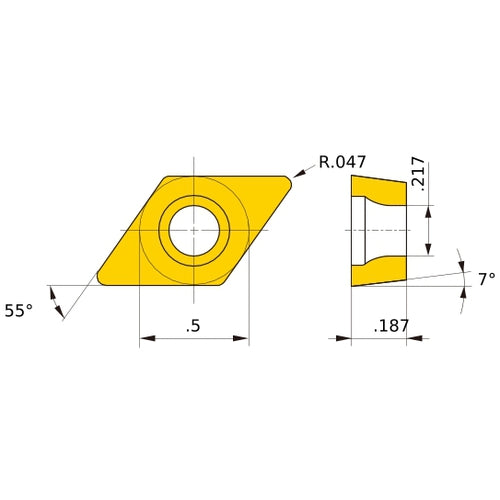

DCMT 433 standard UE6110, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB02407425
Brand: Mitsubishi Materials USA
Model #: 407425
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Grade | UE6110 |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 5.5 mm |
| Insert Style | DCMT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 433 |
| Chip Breaker Type | standard |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees |
| Series/List # | UE6110 |
| Cutting Edge Material | Carbide |
