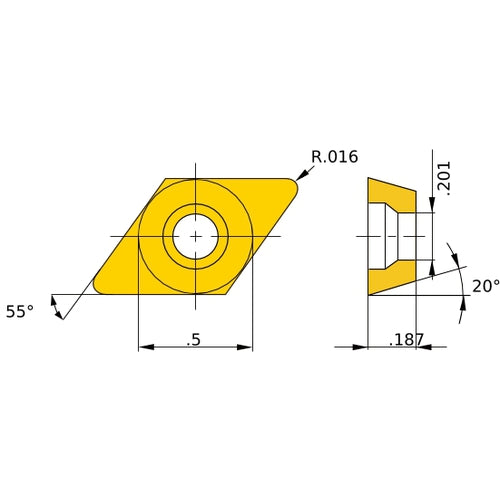

DEGX 431 R-F HTi10, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB02392833
Brand: Mitsubishi Materials USA
Model #: 392833
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Grade | HTi10 |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 5.1 mm |
| Insert Style | DEGX |
| Clearance Angle Major (AN) | 20 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Size | 431 |
| Chip Breaker Type | R-F |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees |
| Series/List # | HTi10 |
| Cutting Edge Material | Carbide |
| Cutting Edge Effective Length (LE) | 7.6 mm |
