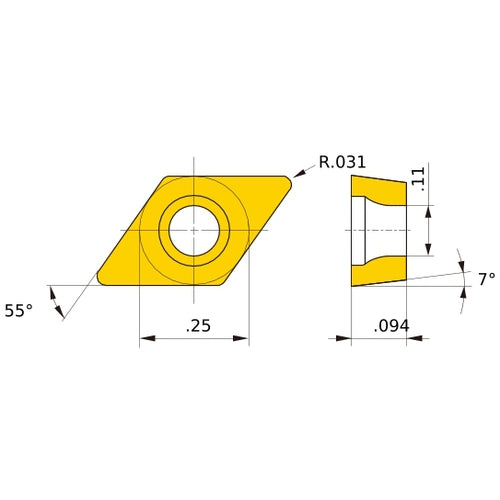

DCMT 21.52 standard US735, 1/32″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Item #: MB02294424
Brand: Mitsubishi Materials USA
Model #: 294424
| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel |
| Grade | US735 |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 2.8 mm |
| Insert Style | DCMT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.8 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 21.52 |
| Chip Breaker Type | standard |
| Insert Thickness (S) | 2.38 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees |
| Series/List # | US735 |
| Cutting Edge Material | Carbide |
