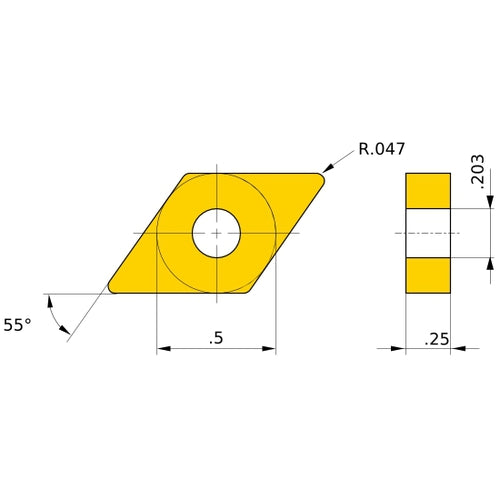

DNMA 443 flat_top UC5105, 3/64″ Corner Radius, 1/4″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB02293069
Brand: Mitsubishi Materials USA
Model #: 293069
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Grade | UC5105 |
| Insert Style | DNMA |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 1.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 443 |
| Chip Breaker Type | flat_top |
| Insert Thickness (S) | 6.35 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees |
| Series/List # | UC5105 |
| Cutting Edge Material | Carbide |
