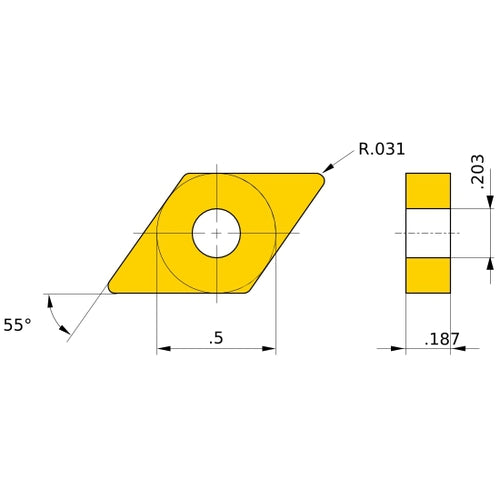

DNGG 432 R NX2525, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB02165930
Brand: Mitsubishi Materials USA
Model #: 165930
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Grade | NX2525 |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Insert Style | DNGG |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.8 mm |
| Chip Breaker Type | R |
| Insert Size | 432 |
| Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm |
| Shape | 55° Rhombic |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Series/List # | NX2525 |
| Insert Included Angle (EPSR) | 55 Degrees |
| Cutting Edge Effective Length (LE) | 14.3 mm |
| Cutting Edge Material | Cermet |
