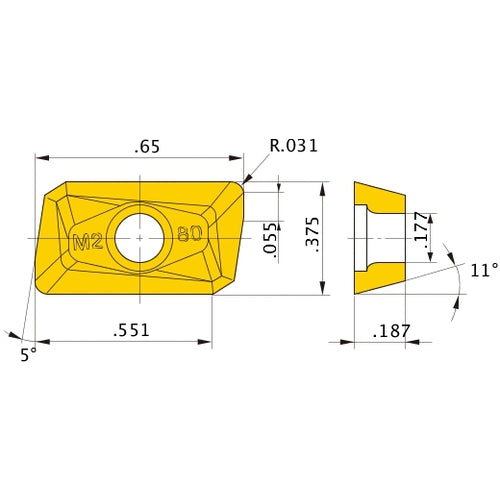

* APMT1604PDER-M2 F7030 INSERT
Item #: MB02152872
Brand: Mitsubishi Materials USA
Model #: 152872
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel |
| Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 17.1 mm |
| Series/List # | F7030 |
| Corner Radius (RE) | 0.8 mm |
| Hole Diameter | 4.5 mm |
| Insert Width (W1) | 9.525 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 4.76 mm |
| Tool Type | rotating_inserts |
| Wiper Edge Length (BS) | 1.4 mm |
| Cutting Edge Effective Length (LE) | 14 mm |
| Grade | F7030 |
| Measurement Type | Metric |
