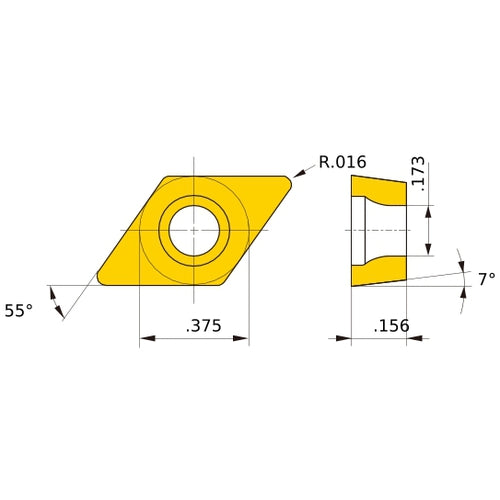

DCMT32.51LS MP9025
Item #: MB0210610459
Brand: Mitsubishi Materials USA
Model #: 10610459
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Grade | MP9025 |
| Application | Light Cutting |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | DCMT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 32.51 |
| Chip Breaker Type | LS |
| Insert Thickness (S) | 3.97 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees |
| Series/List # | MP9025 |
| Cutting Edge Material | Carbide |
