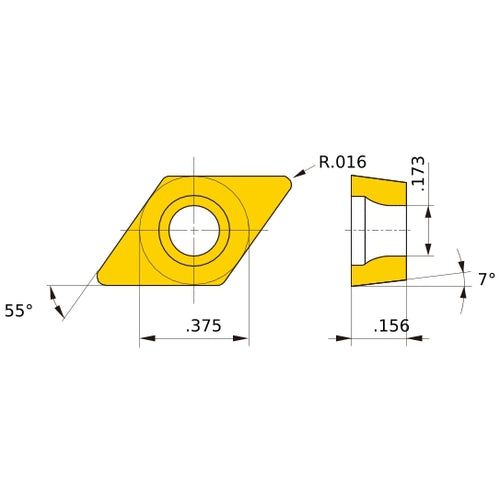

DCMW 32.51 flat_top UTi20T, 0.4 mm Corner Radius, 3.97 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02101555
Brand: Mitsubishi Materials USA
Model #: 101555
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Tool Type | Turning Insert |
| Insert Style | DCMW |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Corner Radius (RE) | 0.4 mm |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.51 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.97 mm |
| Chip Breaker Type | flat_top |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 55 Degrees |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Shape | 55° Rhombic |
| Grade | UTi20T |
| Series/List # | UTi20T |
