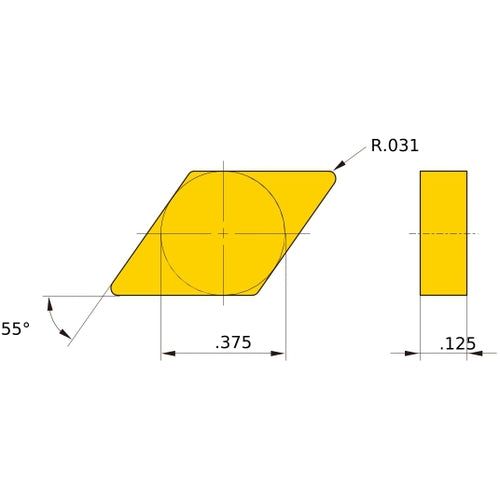

DNG 22 flat_top MBS140, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB01505885
Brand: Mitsubishi Materials USA
Model #: 505885
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Grade | MBS140 |
| Insert Style | DNG |
| Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.8 mm |
| Chip Breaker Type | flat_top |
| Insert Size | 22 |
| Measurement Type | Metric |
| Insert Thickness (S) | 3.18 mm |
| Shape | 55° Rhombic |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Series/List # | MBS140 |
| Insert Included Angle (EPSR) | 55 Degrees |
| Cutting Edge Effective Length (LE) | 10.484 mm |
| Cutting Edge Material | CBN |
