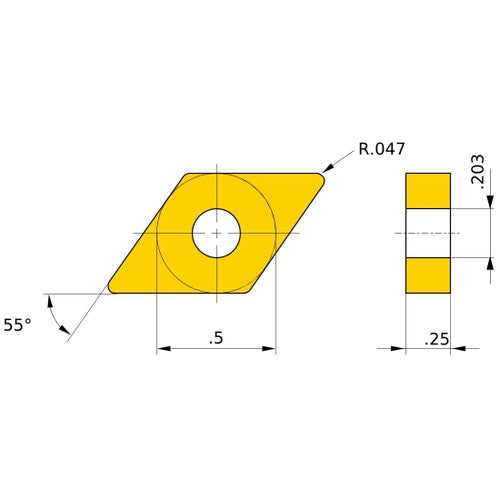

DNGM 443 BM BC8120, 3/64″ Corner Radius, 1/4″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB0110525029
Brand: Mitsubishi Materials USA
Model #: 10525029
| Product Specifications | |
|---|---|
| Applicable Material | Hard Materials |
| Grade | BC8120 |
| Insert Style | DNGM |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 1.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 443 |
| Chip Breaker Type | BM |
| Insert Thickness (S) | 6.35 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Shape | 55° Rhombic |
| Insert Included Angle (EPSR) | 55 Degrees |
| Series/List # | BC8120 |
| Cutting Edge Material | CBN |
| Cutting Edge Effective Length (LE) | 1.9 mm |
