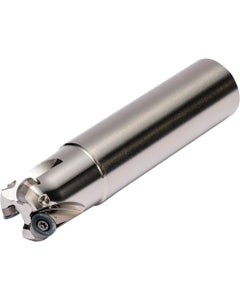

MRX 40W32162T RAD-6 Series, Standard Length Shank, Radius End Mill
Item #: KY96THN07165
Brand: Kyocera Precision Tools
Model #: THN07165
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 40 mm |
| Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 40 mm |
| Functional Length (LF) | 101 mm |
| Cutting Diameter Maximum (DCX) | 40 mm |
| Usable Length (LU) | 8 mm |
| Cutting Item Count (CICT) | 2 |
| Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 101 mm |
| Style | MRX |
| Shank Type | Weldon |
| Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 11 Degrees |
| Series/List # | MRX |
| Application | Facing | Pocketing | Profiling | Ramping | Shouldering | Slotting |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Model Number | 8839173 |
| Master Insert Identification (MIID) | RPMT1605M0ER-GM | RPGT1605M0ER-GM | RPGT1605M0ER-SM | RPMT1605M0EN-GH | RPMW1605M0TN |
| Body Material | Steel |
| Weight of Item (WT) | 1.4639 |
| Shank Length (LS) | 61 mm |
