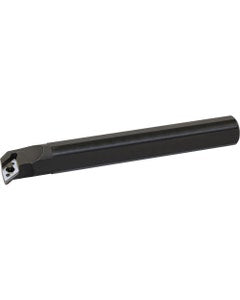

S25RPDQNR1532 Right-Hand, Negative Rake, Boring Bar
Item #: KY96THC08084
Brand: Kyocera Precision Tools
Model #: THC08084
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 200 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Overall Length (OAL) | 200 mm |
| Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Height (H) | 24 mm |
| Series/List # | GPBB |
| Shank Length (LS) | 160 mm |
| Body Material | Steel |
| Functional Width (WF) | 17 mm |
| Style | S...PDQN15 |
| Master Insert Identification (MIID) | | DNMG43 | DNMX43 | DNGG43 | DNGA43 | DNMM43 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 32 mm |
| Weight of Item (WT) | 1.6482 |
| Cutting Direction (HAND) | Right Hand |
