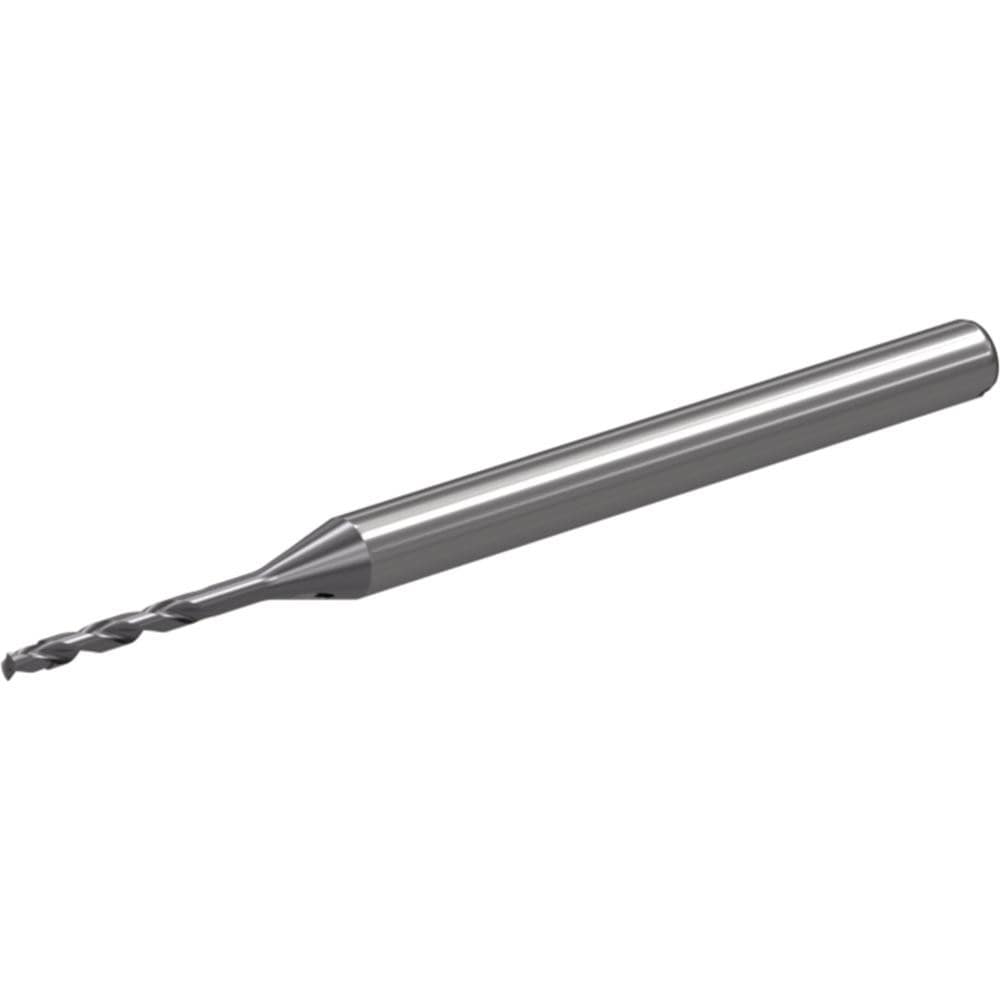

Brand: Widia / Part #: 4144254

Brand: Widia / Part #: 4144254


Item #: 03063088
Brand: Widia
Model #: 4144254

Product Specifications

Drill Bit Size (Inch) 3/4
Tool Material Carbide
Coating/Finish TiAlN
Drill Point Angle 140
Shank Type Cylindrical
Coolant Through Yes
Flute Type Spiral
Series VDS403A
Point Type Standard
Cutting Direction Right Hand
Tool Application Deep Hole Drilling
Spiral Type Regular
Drill Bit Diameter Tolerance -0.000827 to 0.000000 in
Number Of Flutes 2
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Drill Bit Grade WU25PD
Drill Bit Size (Decimal Inch) 0.7344
Drill Point Length (Decimal Inch) 0.1276
Overall Length (Decimal Inch) 9.2126
Shank Diameter (Decimal Inch) 0.7874
Shank Length (Decimal Inch) 1.9685
Flute Length (Decimal Inch) 7.1260
Flute By Diameter Ratio 8xD
Maximum Drilling Depth (Decimal Inch) 6.2992
$699.21
