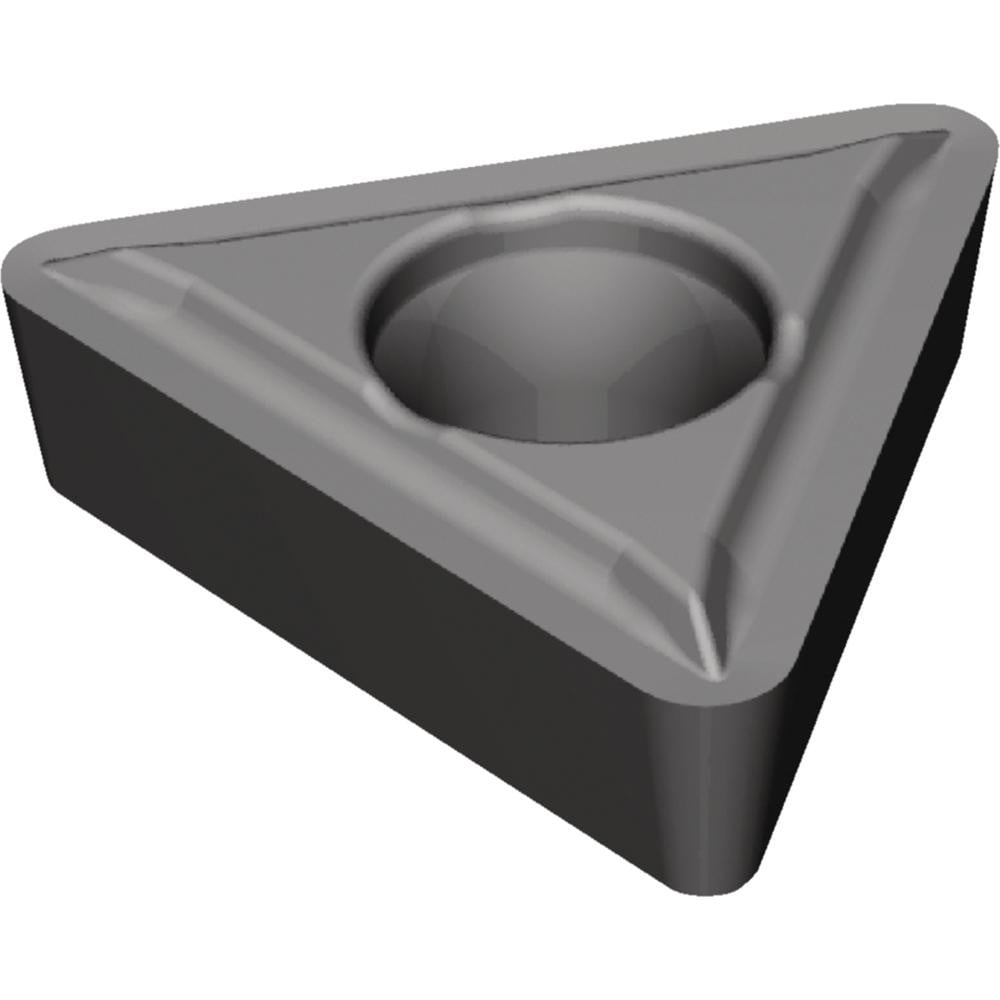

Brand: Widia / Part #: 4166471

Brand: Widia / Part #: 4166471


Item #: 93318921
Brand: Widia
Model #: 4166471

Product Specifications

Insert Style TCMT
Insert Shape Code T
Insert Size Code 3252
Insert Shape Triangle
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade TN20P
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1728
Maximum Depth of Cut (Decimal Inch) 0.3248
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1563
Clearance Code C
Tolerance Code M
Included Angle 60.00
Relief Angle 7.000
Series TCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.6495
Number Of Cutting Edges 3
Secondary Workpiece Material Cast Iron; Steel
Secondary Workpiece Material Code P; K
Ansi Code TCMT32521P
Iso Code TCMT16T3081P
Manufacturers Catalog Number TCMT32521P
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 1P
Style TCMT
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$8.79
