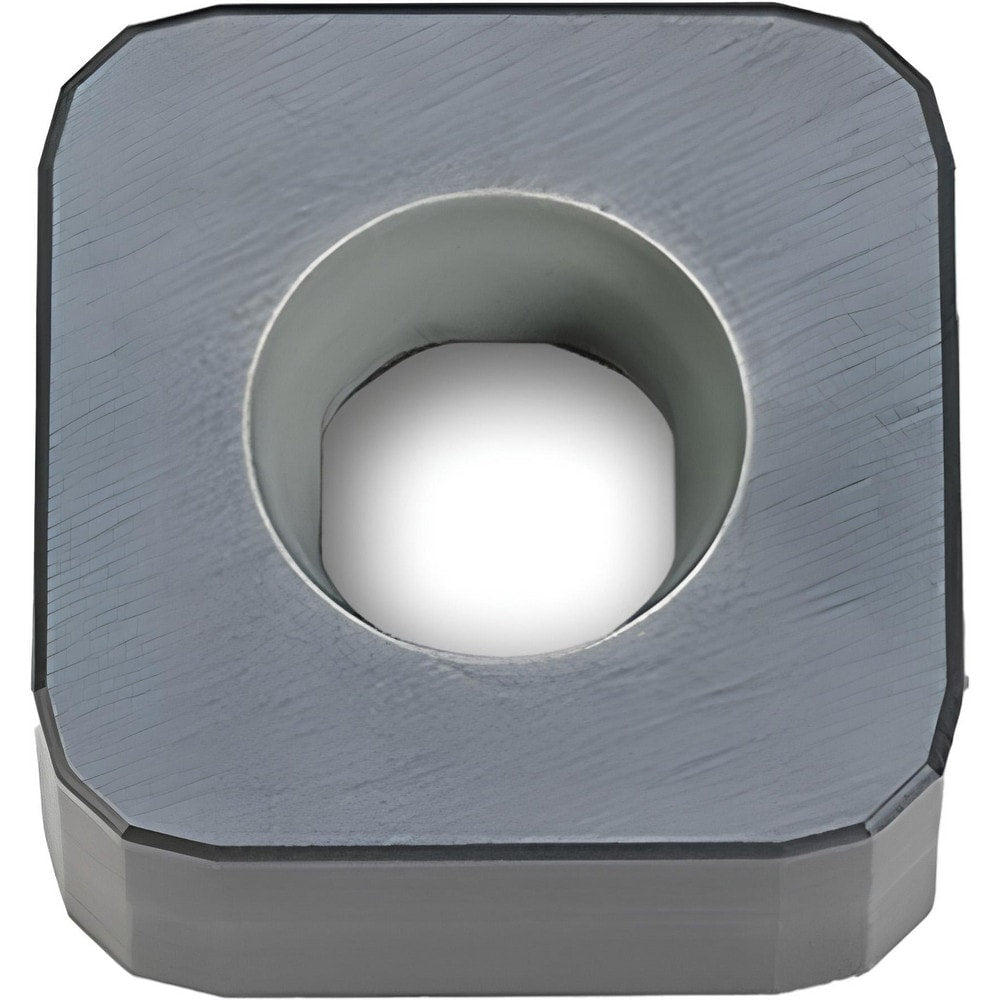

Brand: Ingersoll Cutting Tools / Part #: 5702957
Item #: 16374456
Brand: Ingersoll Cutting Tools
Model #: 5702957
Product Specifications
| Insert Style | SNGQ |
| Insert Size Code | 1205 |
| Insert Material | Silicon Nitride |
| Manufacturer Grade | IN71N |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Hand | Neutral |
| Series | SNGQ |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.4200 |
| Number Of Cutting Edges | 8 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SNGQ1205ENN |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | SNGQ1205ENN IN71N |
| Cutter Series Compatibility | 1DD1H; DL6H; DL5H; DN6H; DD6H; DN5H |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2510 |
| Multi-Use Tool | No |
