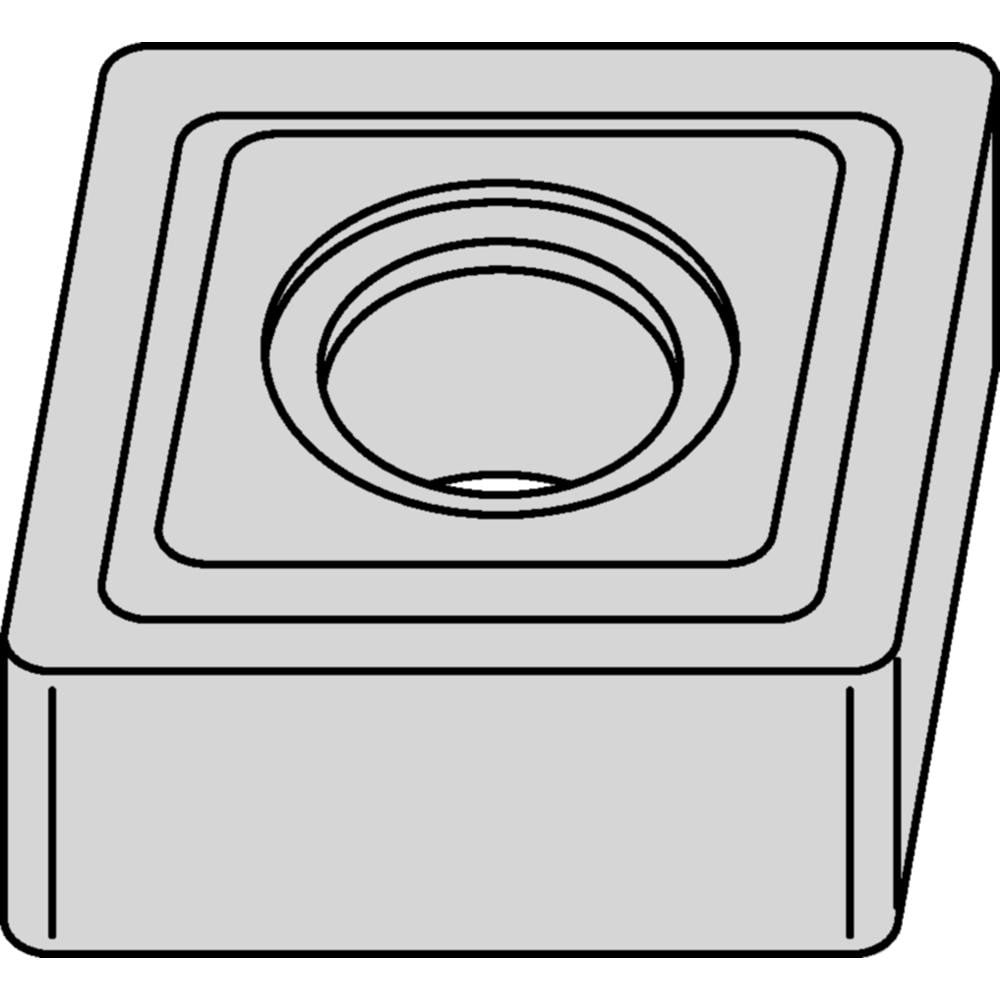

Brand: Widia / Part #: 4166451

Brand: Widia / Part #: 4166451


Item #: 93322980
Brand: Widia
Model #: 4166451

Product Specifications

Insert Style CNMG
Insert Shape Code C
Insert Size Code 6437
Insert Shape Diamond
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade TN30P
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.3122
Maximum Depth of Cut (Decimal Inch) 0.3808
Inscribed Circle (Decimal Inch) 0.7500
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.7616
Number Of Cutting Edges 8
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Ansi Code CNMG6437N
Iso Code CNMG1906127N
Manufacturers Catalog Number CNMG6437N
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 7N
Style CNMG
Width (Decimal Inch - 4 Decimals) 0.7500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$19.72
