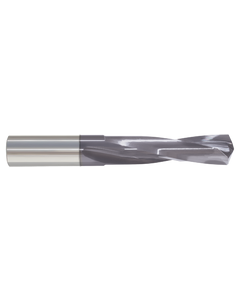

29/64 CARB STUB DRILL AlTiN
Item #: MW23460104531B
Brand: Monster Tool Company
Model #: 460-104531B
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 29/64″ |
| Cutting Edge Material | Solid Tungsten Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 29/64″ |
| Tool Type | Drill |
| Decimal Equivalent | 0.4531″ |
| Grade | C-2 Sub-Micron |
| Length Group | Short/Stub |
| Point Shape | Drill Point |
| Coating | TiAlN |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Series/List # | 460 |
| Application | | Drilling | |
| Length Chip Flute (LCF) | 2-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 29/64″ |
| Overall Length (OAL) | 3-9/16″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 135 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 2-1/8″ |
| Single / Double End | Single End |
| Flute Helix Angle (FHA) | 15 Degrees |
