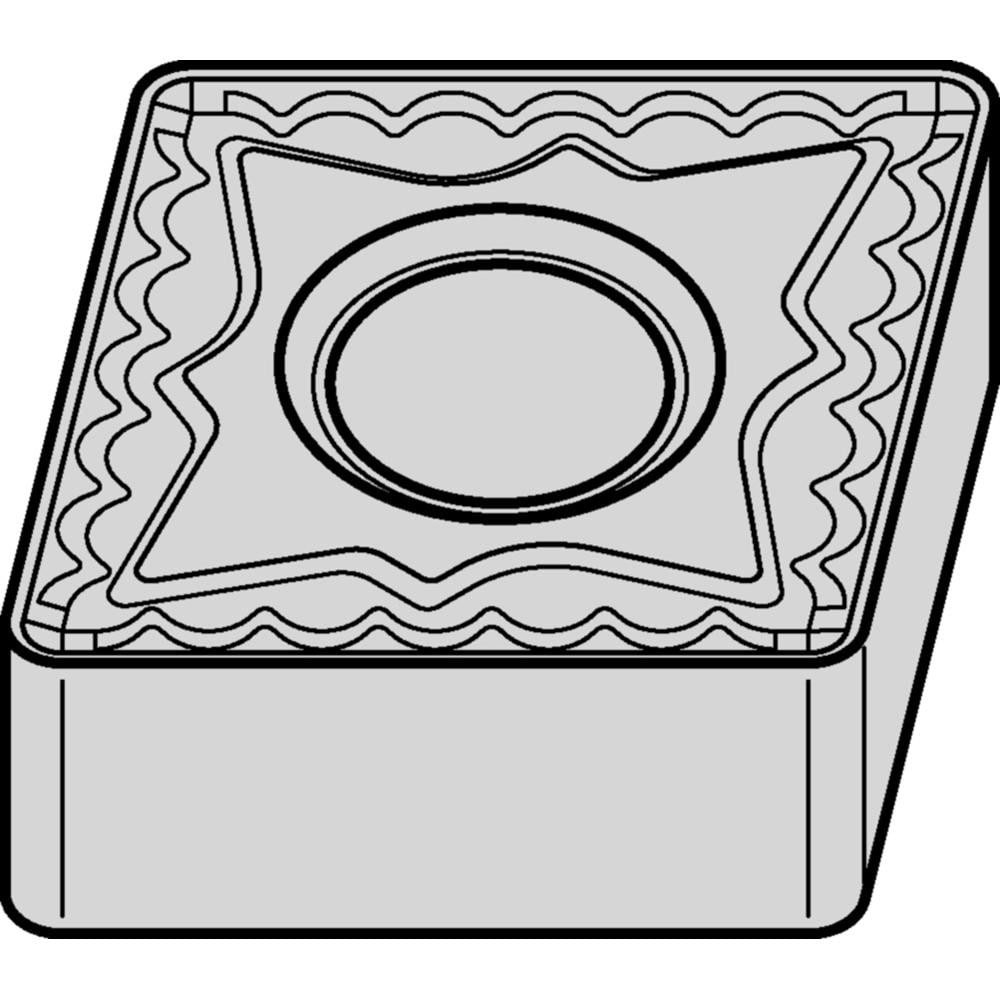

Brand: Widia / Part #: 4165968

Brand: Widia / Part #: 4165968


Item #: 94019759
Brand: Widia
Model #: 4165968

Product Specifications

Insert Style CNMG
Insert Shape Code C
Insert Size Code 432
Insert Shape Diamond
Coating/Finish TiCN; TiN; Al2O3
Manufacturer Grade TN30P
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.2539
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.5077
Number Of Cutting Edges 8
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Ansi Code CNMG4326P
Iso Code CNMG1204086P
Manufacturers Catalog Number CNMG4326P
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker 6P
Style CNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$8.77
