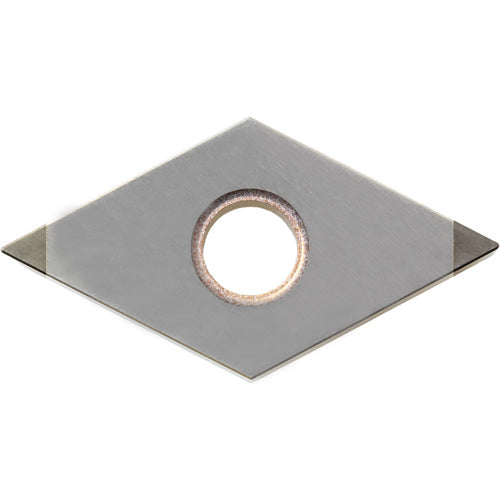

DNGA 433 KBN525, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, 55 Degree Diamond, Turning Indexable Insert
Item #: KY99TBW02222
Brand: Kyocera Precision Tools
Model #: TBW02222
| Product Specifications | |
|---|---|
| Applicable Material | Hard Materials |
| Tool Type | Turning Insert |
| Application | Boring | Copying | External Turning |
| Fixing Hole Diameter (D1) | 0.2032″ |
| Insert Style | DNGA |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ |
| Number of Cutting Edges | 2 |
| Insert Size | 433 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ |
| Quantity | 1 |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 55 Degrees |
| Shape | 55° Diamond |
| Cutting Edge Material | CBN |
| Series/List # | ISOI |
| Grade | KBN525 |
| Model No | 8820701 |
