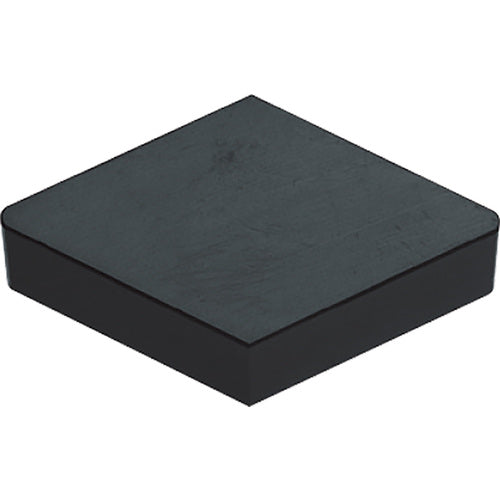

DNG 451 A65, 1/64″ Corner Radius, 5/16″ Thick, 1/2″ Inscribed Circle, Al2O3/TiC, 55 Degree Diamond, Turning Indexable Insert
Item #: KY98TCR00990
Brand: Kyocera Precision Tools
Model #: TCR00990
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Hard Materials |
| Grade | A65 |
| Application | Back Turning | Copying | External Turning |
| Tool Type | Turning Insert |
| Insert Style | DNG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ |
| Number of Cutting Edges | 4 |
| Insert Size | 451 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/16″ |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 55 Degrees |
| Shape | 55° Diamond |
| Cutting Edge Material | Ceramic |
| Series/List # | ISOI |
| Coating | Al2O3/TiC |
| Model No | 8800997 |
