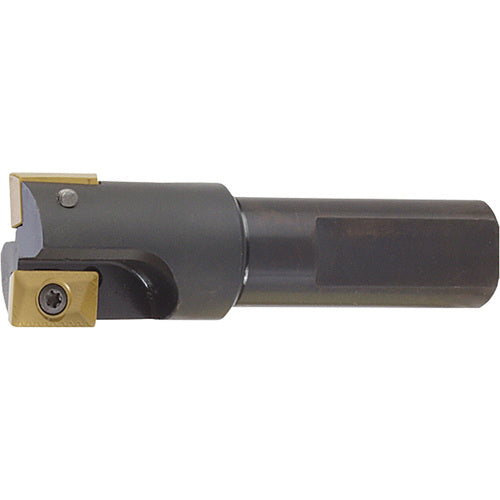

0688 0.6875 EM
Item #: KY968600993
Brand: Kyocera Precision Tools
Model #: OTM86387
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 11/16″ |
| Tool Type | End Mill |
| Cutting Diameter (DC) | 11/16″ |
| Usable Length (LU) | 3/5″ |
| Cutting Item Count (CICT) | 1 |
| Flute Count (NOF) | 1 |
| Overall Length (OAL) | 2.9″ |
| Coolant Supply Property (CSP) | External |
| Shank Type | Weldone |
| Style | EM |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Application | Facing | Shouldering | Slotting | Ramping |
| Angle | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Series/List # | EM |
| Master Insert Identification (MIID) | XPMT15T304 | XPMT15T308 | XPMT15T316 | XPMT15T324 | XPMT15T331 | XPMT15T364 |
| Measurement Type | Inch |
| Head Length (LH) | 1″ |
