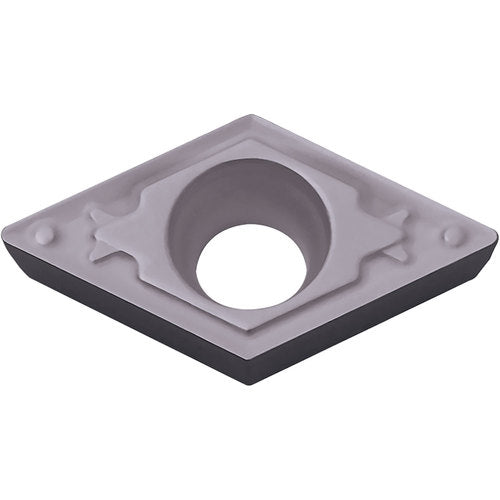

DCMT 3251 HQ PV7005, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiC/TiN (MEGACOAT), 55 Degree Diamond, Turning Indexable Insert
Item #: KY91TJA03531
Brand: Kyocera Precision Tools
Model #: TJA03531
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Tool Type | Turning Insert |
| Application | Back Boring | Copying | External Turning |
| Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | DCMT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/64″ |
| Number of Cutting Edges | 2 |
| Insert Size | 3251 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ |
| Chip Breaker Type | HQ |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 55 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 55° Diamond |
| Coating | TiC/TiN (MEGACOAT) |
| Series/List # | ISOI |
| Grade | PV7005 |
| Model No | 8837328 |
