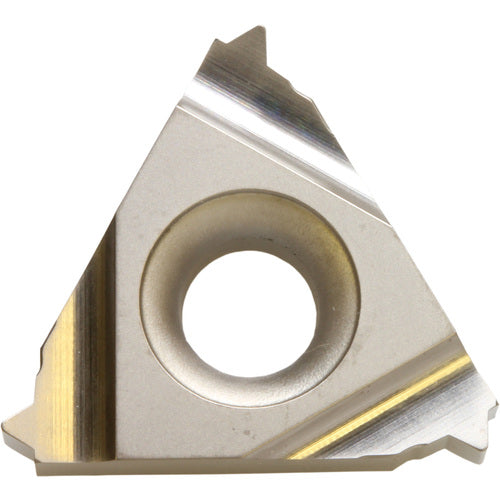

TNN 32ER60008 TC40 INSERT
Item #: KY918803402
Brand: Kyocera Precision Tools
Model #: 8803402
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) | Unified (UN) |
| Applicable Material | Steel | Cast Iron |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Insert Style | TNN |
| Threads per Inch (TPI) | 18-10 |
| Mounting Style | Clamp or Screw |
| Corner Radius (RE) | 0.0079″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ |
| Angle | 60 Degrees |
| Grade | TC40 |
| Cutting Item Count (CICT) | 3 |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
| Cutting Position | External |
| Hole Diameter | 0.1575″ |
| Application | External Threading |
| Insert Seat Size Code (SSC) | 32 |
