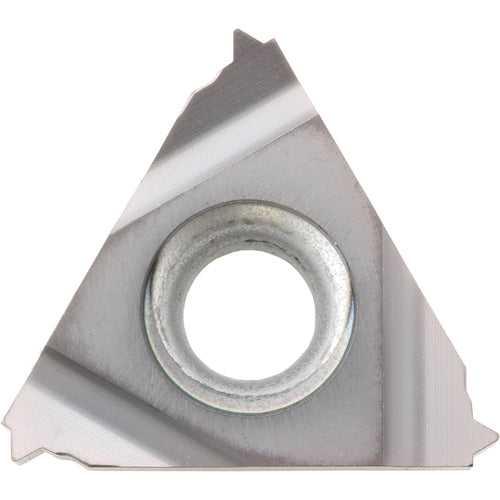

11 IR150ISO GW15 Grade Uncoated Carbide, Indexable Threading Insert
Item #: KY90TWF18310
Brand: Kyocera Precision Tools
Model #: TWF18310
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Insert Style | 11IR |
| Thread Pitch (TP) | 1.5 mm |
| Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.11 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.18 mm |
| Cutting Item Count (CICT) | 3 |
| Grade | GW15 |
| Series/List # | LDT |
| Coating | WC/Co |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Hole Diameter | 3 mm |
| Cutting Position | Internal |
| Profile Included Angle (PNA) | 60 Degrees |
| Application | Internal Threading |
