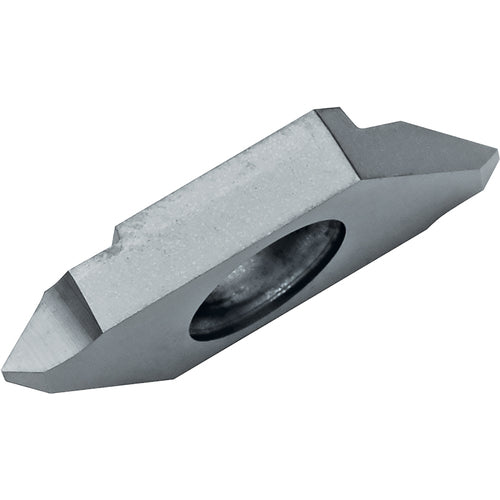

TKFT 12RB6000 KW10 Grade Uncoated Carbide, Indexable Threading Insert
Item #: KY90TWE16564
Brand: Kyocera Precision Tools
Model #: TWE16564
| Product Specifications | |
|---|---|
| Thread Standard | Metric | UN |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 0.2 mm - 0.6 mm |
| Application | External Threading |
| Threads per Inch (TPI) | 64-48 |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Corner Radius (RE) | 0.002″ |
| Number of Teeth | 2 |
| Insert Thickness (S) | 0.343″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Cutting Width (CW) | 0.0984″ |
| Series/List # | KTKF |
| Insert Size | 12 |
| Mounting Style | Screw |
| Grade | KW10 |
| Measurement Type | Inch | Metric |
| Coating | WC/Co |
| Insert Style | TKFT |
| Cutting Edge Material | Carbide |
| Coating Process | Uncoated |
| Cutting Position | External |
