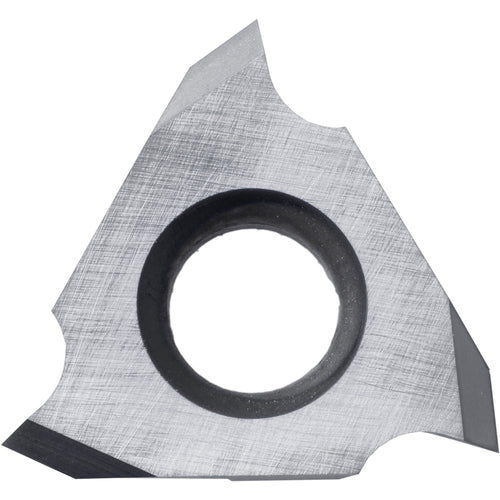

TTX 32R6000S KW10 Grade Uncoated Carbide, Indexable Threading Insert
Item #: KY90TWE02992
Brand: Kyocera Precision Tools
Model #: TWE02992
| Product Specifications | |
|---|---|
| Thread Standard | Metric | UN |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 0.5 mm |
| Application | External Threading |
| Threads per Inch (TPI) | 56-48 |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Insert Thickness (S) | 1/8″ |
| Number of Teeth | 3 |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Insert Size | 32 |
| Series/List # | KTTX |
| Grade | KW10 |
| Mounting Style | Screw |
| Coating | WC/Co |
| Measurement Type | Inch | Metric |
| Cutting Edge Material | Carbide |
| Insert Style | TTX |
| Cutting Position | External |
| Coating Process | Uncoated |
