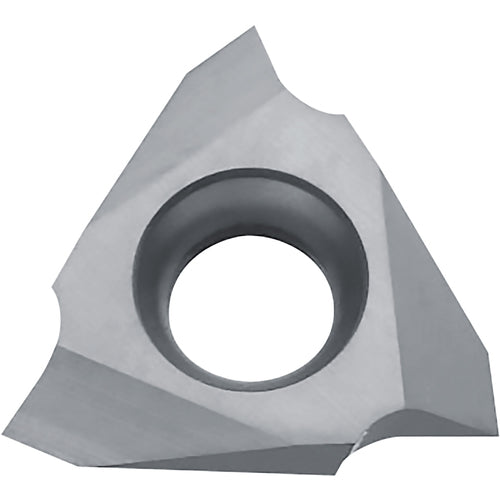

TT 43R6002 KW10 Grade Uncoated Carbide, Indexable Threading Insert
Item #: KY90TWE02860
Brand: Kyocera Precision Tools
Model #: TWE02860
| Product Specifications | |
|---|---|
| Thread Standard | Metric | UN |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 1 mm - 3.5 mm | 1.5 mm - 3 mm |
| Application | External Threading | Internal Threading |
| Threads per Inch (TPI) | 16-8 | 8 |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Corner Radius (RE) | 0.008″ |
| Number of Teeth | 3 |
| Insert Thickness (S) | 3/16″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Series/List # | KTT |
| Insert Size | 43 |
| Mounting Style | Screw |
| Grade | KW10 |
| Measurement Type | Inch | Metric |
| Coating | WC/Co |
| Insert Style | TT |
| Cutting Edge Material | Carbide |
| Coating Process | Uncoated |
| Cutting Position | Internal & External |
