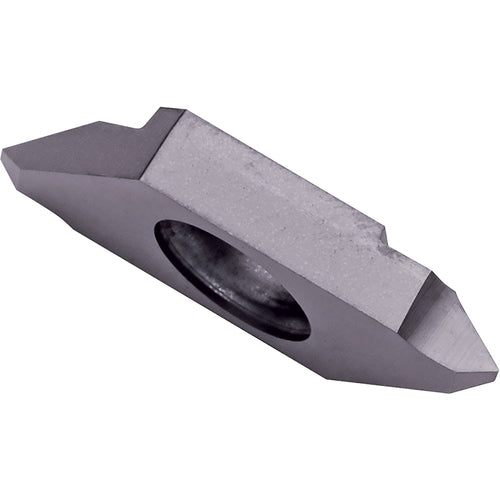

TKFT 12LA6000 PR1535 Grade PVD Carbide, Indexable Threading Insert
Item #: KY90TLC16561
Brand: Kyocera Precision Tools
Model #: TLC16561
| Product Specifications | |
|---|---|
| Thread Standard | Metric | UN |
| Cutting Direction (HAND) | Left Hand |
| Thread Pitch (TP) | 0.2 mm - 0.6 mm |
| Application | External Threading |
| Threads per Inch (TPI) | 64-48 |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Corner Radius (RE) | 0.002″ |
| Number of Teeth | 2 |
| Insert Thickness (S) | 0.343″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Cutting Width (CW) | 0.0984″ |
| Series/List # | KTKF |
| Insert Size | 12 |
| Mounting Style | Screw |
| Grade | PR1535 |
| Measurement Type | Inch | Metric |
| Coating | MEGACOAT NANO |
| Insert Style | TKFT |
| Cutting Edge Material | Carbide |
| Coating Process | PVD |
| Cutting Position | External |
