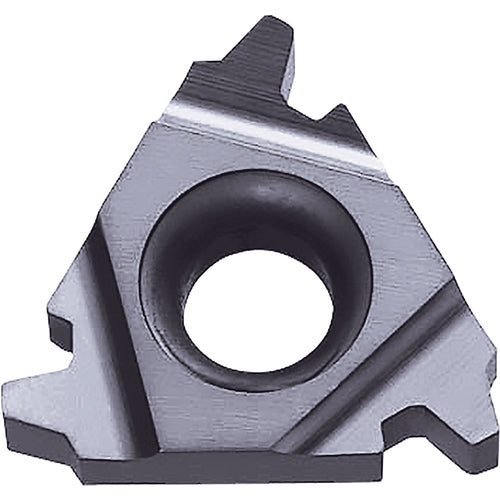

16 ER200TR PR1115 Grade PVD Carbide, Indexable Threading Insert
Item #: KY90TJY18748
Brand: Kyocera Precision Tools
Model #: TJY18748
| Product Specifications | |
|---|---|
| Thread Standard | Trapezoidal (Tr) |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Insert Style | 16ER |
| Thread Pitch (TP) | 2 mm |
| Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.2 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.68 mm |
| Cutting Item Count (CICT) | 3 |
| Grade | PR1115 |
| Series/List # | LDT |
| Coating | TiAlN |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Hole Diameter | 4 mm |
| Cutting Position | External |
| Profile Included Angle (PNA) | 30 Degrees |
| Application | External Threading |
