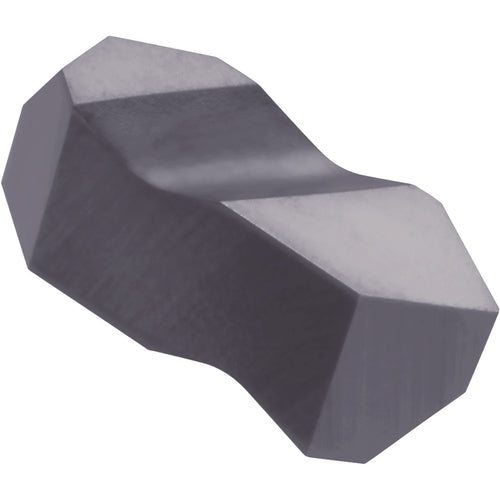

KCT 3L PR1215 Grade PVD Carbide, Indexable Threading Insert
Item #: KY908850699
Brand: Kyocera Precision Tools
Model #: 8850699
| Product Specifications | |
|---|---|
| Thread Standard | Metric | UN |
| Cutting Direction (HAND) | Left Hand |
| Thread Pitch (TP) | External 1.5 mm - 4 mm | Internal 2.25 mm - 5 mm |
| Application | External Threading | Internal Threading |
| Threads per Inch (TPI) | External 6-20 | Internal 5-12 |
| Applicable Material | Super-Alloys / Titanium |
| Corner Radius (RE) | 0.007″ |
| Number of Teeth | 2 |
| Insert Thickness (S) | 0.344″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Insert Size | 3 |
| Series/List # | CERA |
| Grade | PR1215 |
| Mounting Style | Clamp |
| Coating | MEGACOAT |
| Measurement Type | Inch | Metric |
| Cutting Edge Material | Carbide |
| Insert Style | KCT |
| Cutting Position | Internal & External |
| Coating Process | PVD |
