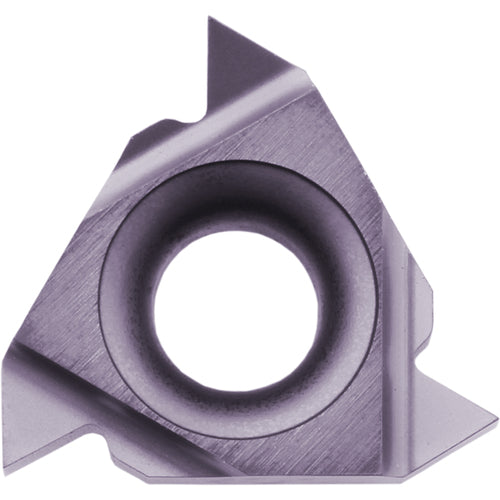

08 IR60007 PR1115 INSERT ALT MFG #08IR60007PR1115
Item #: KY908829830
Brand: Kyocera Precision Tools
Model #: TJY18060
| Product Specifications | |
|---|---|
| Thread Standard | Metric (M) | Unified (UN) |
| Application | Internal Threading |
| Inscribed Circle Diameter (IC) | 3/16″ |
| Applicable Material | Steel |
| Thread Pitch (TP) | 1 mm – 1.75 mm |
| Insert Style | 8 |
| Threads per Inch (TPI) | 20-16 |
| Mounting Style | Clamp |
| Corner Radius (RE) | 0.003″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.0945″ |
| Angle | 60 Degrees |
| Grade | PR1115 |
| Cutting Item Count (CICT) | 3 |
| Coating | TiAlN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Hole Diameter | 0.091″ |
| Cutting Position | Internal |
| Insert Seat Size Code (SSC) | 60007 |
