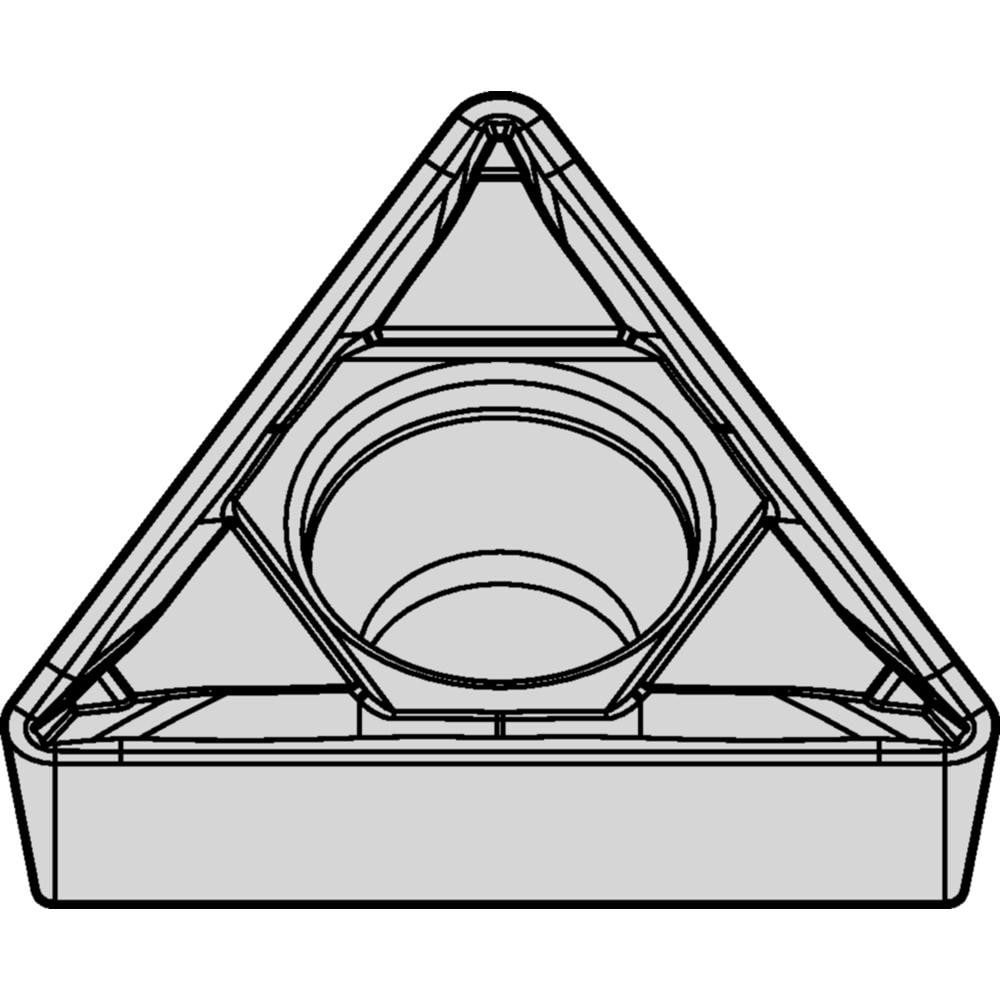

Brand: Widia / Part #: 4170006

Brand: Widia / Part #: 4170006


Item #: 95513388
Brand: Widia
Model #: 4170006

Product Specifications

Insert Style TCMT
Insert Shape Code T
Insert Size Code 2151
Insert Shape Triangle
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP15CT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1102
Maximum Depth of Cut (Decimal Inch) 0.2166
Inscribed Circle (Decimal Inch) 0.2500
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.0938
Clearance Code C
Tolerance Code M
Included Angle 60.00
Relief Angle 7.000
Series TCMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.4331
Number Of Cutting Edges 3
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code TCMT2151FP
Iso Code TCMT110204FP
Manufacturers Catalog Number TCMT2151FP
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker FP
Cutting Edge Style Sharp
Style TCMT
Width (Decimal Inch - 4 Decimals) 0.2500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$8.16
