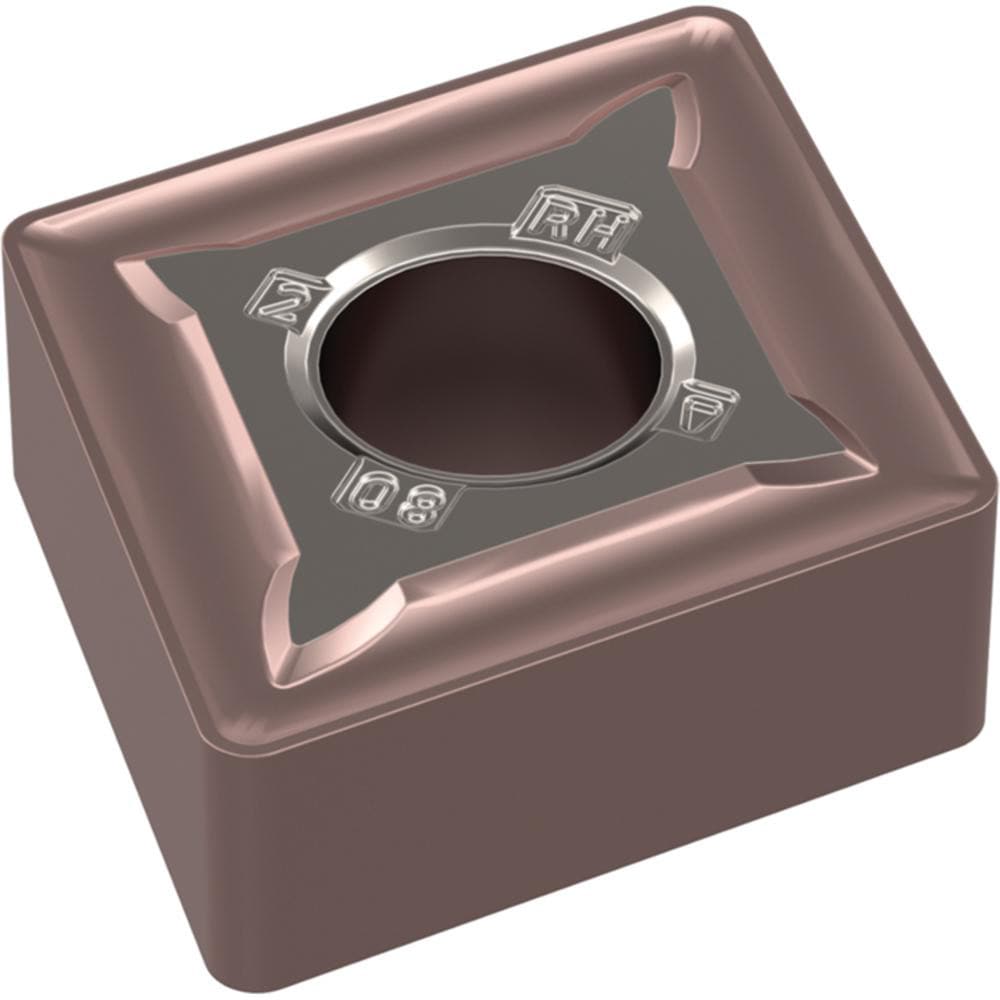

Brand: Widia / Part #: 4171508

Brand: Widia / Part #: 4171508


Item #: 94068400
Brand: Widia
Model #: 4171508

Product Specifications

Insert Style CNMG
Insert Shape Code C
Insert Size Code 543
Insert Shape Diamond
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP25CT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2500
Maximum Depth of Cut (Decimal Inch) 0.3173
Inscribed Circle (Decimal Inch) 0.6250
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6346
Number Of Cutting Edges 8
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code CNMG543RH
Iso Code CNMG160612RH
Manufacturers Catalog Number CNMG543RH
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker RH
Style CNMG
Width (Decimal Inch - 4 Decimals) 0.6250
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$13.84
